Product Details:
|
| Features: | Long Life, Self Locking | Type: | Single Enveloping Worm Gear |
|---|---|---|---|
| Material: | 42CRMN Or 50Mn | Application: | Horizontal Single Axis Tracking Systems |
| Field Life: | 30 Years | Color: | As Requested |
| Size: | 3 Inches To 25 Inches | Motor Supply: | 24V, 12V, 48V |
| Highlight: | Anti Backlash Slewing Bearing Drive,48V Slewing Bearing Drive,Anti Backlash Solar Slew Drive |
||

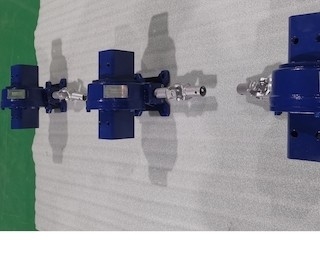

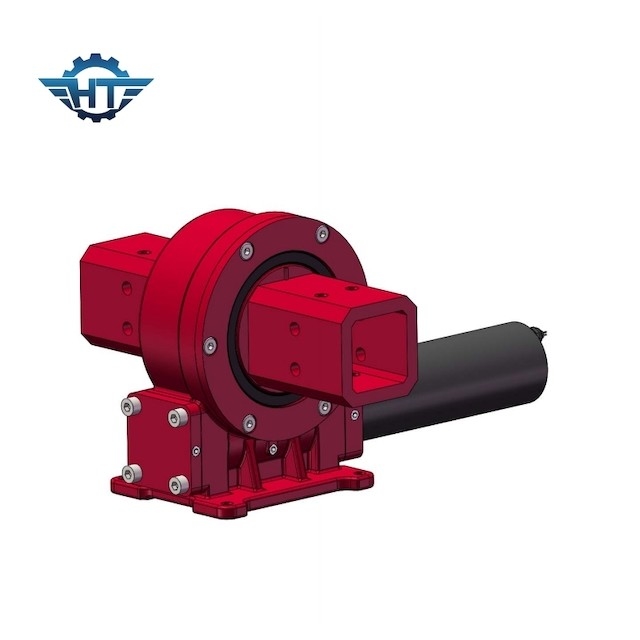

VE5 Small Backlash Enclosed Slewing Drive For Horizontal Single Axis Tracking Systems
Worm Gears Slewing Drive Description
A Slew Drive, commonly referred as a worm drive, is a complete, ready to install system that consists of gear, worm, base, top plate and completely enclosed housing. It can be customized with hydraulic or 12V/24V/48V electric motors, planetary gearboxes. As a key component of the tracking system, the slewing reducer is called the "heart" of the tracking system, and its product performance directly affects the accuracy of the tracking system.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Features
Reliable accuracy with toroidal enveloping worm, also many features and advantages
Designed for single axis solar trackers and applications requiring horizontal axis output
Using the slewing bearing principle
±60° rotation
Self-locking gear set
Input torque, output torque and installation can be customized
Motor option
Applications
The worm gear and worm drive have the characteristics of reverse self-locking, which can realize reverse self-locking, that is, only the worm can drive the worm gear, but the worm cannot be driven by the worm gear to move. When the lead angle of the worm is less than the equivalent friction angle between the meshing gear teeth, the mechanism has self-locking properties and can achieve reverse self-locking, that is, only the worm can drive the worm wheel, but the worm cannot be driven by the worm wheel. Such as the self-locking worm mechanism used in its heavy machinery, its reverse self-locking can play a role in safety protection. This feature makes the slewing drive device widely used in lifting, aerial work and other equipment. While improving the technological content of the main engine, it also greatly improves the operation stability and safety factor of the main engine. It is an important embodiment of the safe construction application of mechanical equipment.
