Product Details:
|
| Material: | 50Mn, 42CrMo | Model: | 9 Inches |
|---|---|---|---|
| Duty Cycle: | 30 Years | Precision: | 0.15 Degree |
| Driver: | Electric Motors | Color: | As Requested |
| Shipping: | By Sea, Air, Express, Railway | Package: | Plywood Case |
| Highlight: | Hourglass Worm Solar Tracker Slew Drive,Linkage Horizontal Solar Tracker Slew Drive,Hourglass Worm Single Axis Slewing Drive |
||
VE9 Solar Hourglass Worm Gear For Linkage Horizontal Single Axis Tracking Systems
Hourglass Worm Gear Slew Drive Description

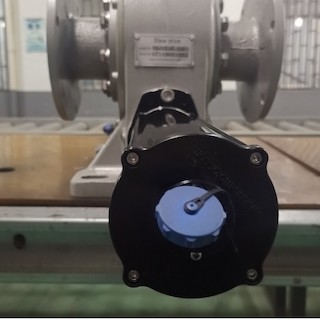

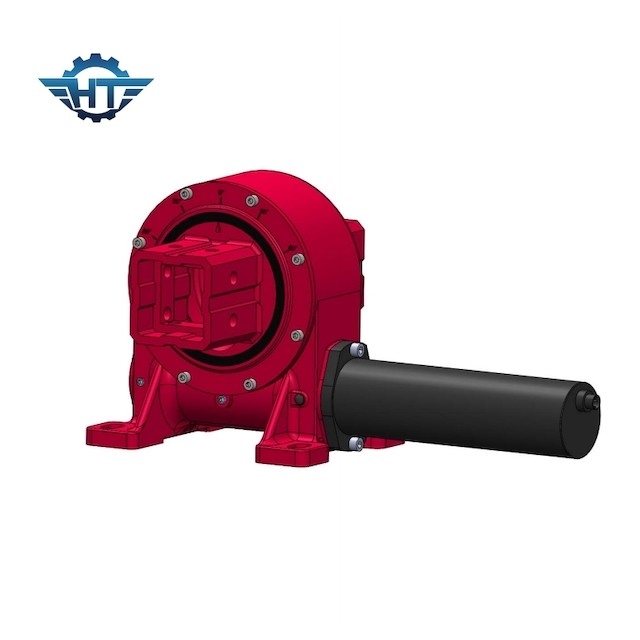

Hourglass VE9 slewing drive is also called vertical single axis slewing drive. It is a fully-enclosed, vertical drive that does not require other components for mounting. It can be easily installed on the plate by just four bolts. It is most commonly used in the center of single-axis solar trackers to hold the solar array sturdy in a high wind storm without breaking. It can be also installed at both side of the single axis solar tracking system. Our slewing drive uses hourglass worm technology will offer the greatest level of strength and power thereby increasing field life and decreasing downtime.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
Inclined single axis tracking system
Compared with the flat single-axis tracking system, the inclined single-axis tracking system has a certain inclination angle between the rotation axis and the horizontal plane, which has certain advantages in radiation reception in higher latitude areas.
