Product Details:
|
| Material: | 50Mn, 42CrMo | Slewing Device: | VE9 |
|---|---|---|---|
| Gear Ratio: | 61:1 | Holding Torque: | 80000 Nm |
| Tilting Torque: | 16000 Nm | Rated Output Torque: | 8784 Nm |
| Transport Package: | Plywood And Pallet | Standard Color: | RAL 9006 |
| Highlight: | VE9 Solar Small Slew Drive,Horizontal Linkage Small Slew Drive,42CrMo VE9 solar slew drive |
||

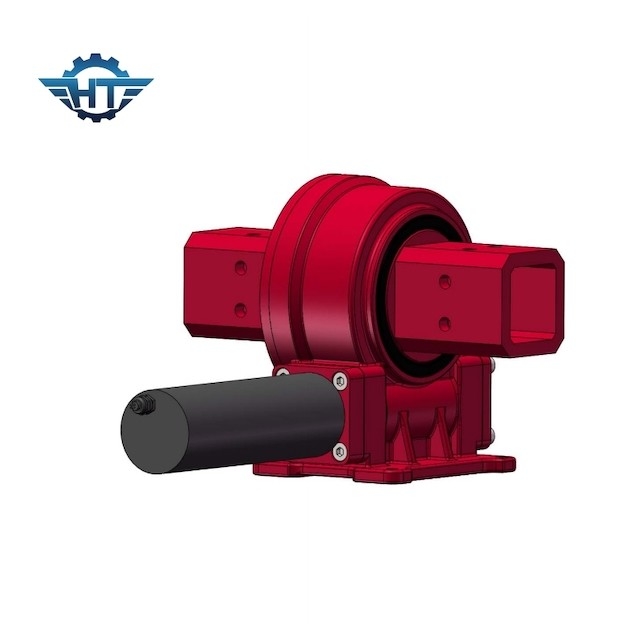

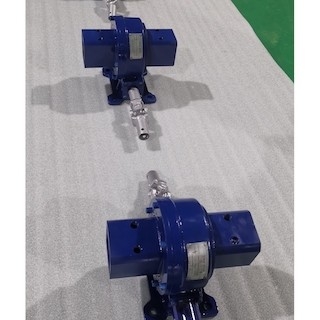

VE9 Solar Slewing Drives For Linkage Horizontal Single Axis Solar Tracking Systems
Linkage Single Axis Slewing Drive Description
Link single-axis slewing drives rotate around one axis and make the tracking system move from east to west and back to home at night. These products are the easiest to install, and the most commonly used. The VE offers vertical mounting and a fully-enclosed drive IP66 in one high-powered unit.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Maintainance
The slewing drive device is a force transmission element that performs relative slewing motion between the upper body and the lower body, and is used to support the mass of the upper body and bear the working load. The motor is used as the driving method. When the rotary motor rotates, the planetary gear reduction box is driven by the motor, and then the output shaft of the rotary drive is driven, so that the rotary drive device can be rotated.
The good performance of the rotating structure components is the basic guarantee of the overall flexibility, so the lubrication work is essential.
According to different applications, the cycle of adding grease is also different. For photovoltaic applications, the cycle of injecting or replacing grease is five years. For construction machinery applications, because its working speed and frequency are much higher than those of photovoltaic applications, grease must be added or replaced every year or even every six months.
Under special working conditions, such as the tropics, high humidity, dust, and large temperature difference, during continuous operation, the lubrication cycle should be shortened, and some new grease must be added before and after the machine stops running for a long time. Fill the raceway with grease until it seeps out of the sealing band.
