Product Details:
|
| Type: | Single Axis 1 Inch | Material: | 42CRMN, 50Mn |
|---|---|---|---|
| Warranty: | 5~10 Years | Application: | Solar Tracking System |
| Color: | Silver Grey | Driver: | 24VDC Motor |
| Installation: | Horizontal Or Vertical | Matainance: | Interal 5 Years |
| High Light: | Single Axis Worm Slewing Drive,Planetary Motor Worm Slewing Drive,Worm Slewing Solar Tracking Drive |
||

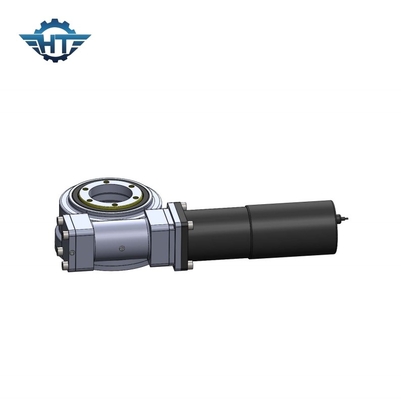

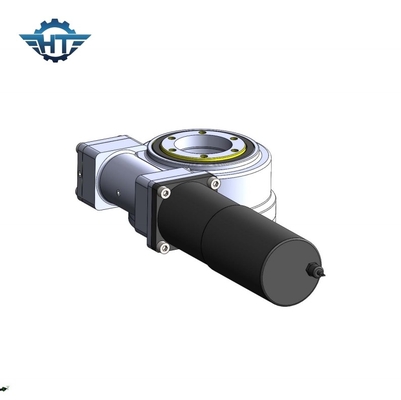

SE1 Single Axis Worm Slewing Drive With 24V Planetary Motor For Solar Tracking System
Enveloping Slewing Drive Description
High reliability: Slewing drives are designed and tested to guarantee a 30-year field life. So all of the raw materials must meet the standards required by ISO9001 and CE. We implement a sound quality control to ensure out products of high quality, reliable and low cost at the same time.
High performance: slewing drives are powered with hourglass worm technology to give the gearbox enormous strength and power, maximum survivability load-holding as well as increased efficiency and accuracy.
Applications: slewing drive applications include solar trackers, wind turbines, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s and automotive lifts etc
Installation: slewing drives could be mounted horizontally, vertically or a combination of multiple axes.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Q&A
1. How to choose?
Please specify the diameter size, width, voltage, power and no-load speed of the required motors, the square meters of the solar panels/mirrors, the arrangement of those solar panels/mirrors.
2. Could I take samples to test quality and market in advance?
Sure, welcome to take samples to test our quality and service.
3. What's the total cost for samples?
Total sample cost= sample cost + freight.
We will give you the best shipping cost after you choose the suitable slewing drives.
4. How do you ship samples?
Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex
5. What's your minimum order quantity?
1 set
6. What's your delivery time?
For standard samples: 0~15 days; for batch orders: within 25~40 days.
