Product Details:
|
| Material: | 42CrMo, QT | Model: | SDE3" |
|---|---|---|---|
| Size: | 3 Inches To 25 Inches | MOQ: | One Piece |
| Feature: | Self Lock Gear | House: | Enclosed Housing |
| OEM: | Available | Rotate Direction: | Any Direction |
| Highlight: | SDE3 Dual Axis Slew Drive,PV Dual Axis Slew Drive,SDE3 slewing ring drive |
||

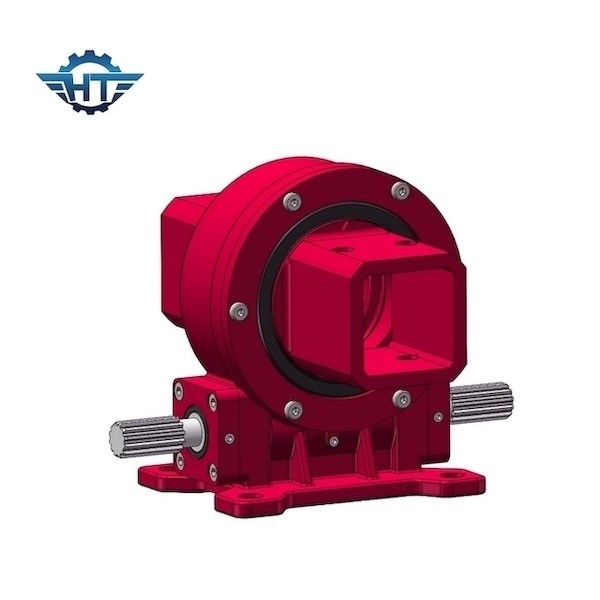

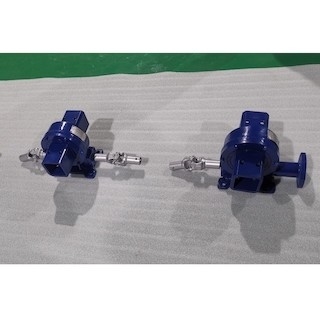

Slow Speed SDE3 Worm Gear Solar Slewing Drives For PV, CSP, CPV Power Station
Worm Gear Solar Slewing Drives Description
Hangtuo slewing drives can be used for solar tracking system, solar dish, PV, CPV ,CSP, wind turbine and satellite dish. They are designed for 30 year field life, working in hard environment conditions. They are anti-corrosion, anti-UV, can ensure the safety of the entire system in extreme weather such as heavy rain, blizzard, hurricane, etc., and can maintain its performance in desert areas with windy sand and large temperature differences. We have various sizes available and can provide custom service based on different technical requirements.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Application
Dish, Stirling Power Generation System
Dual-axis tracking can actually be divided into two categories: horizontal and elevation. Vertical and horizontal slewing drives can be used alone, a vertical and a bedroom set can be used in combination, or two horizontal sets can be used to achieve horizontal and pitch angle movements.
Trough solar thermal system
It can be divided into large groove type and small groove type. Due to the large opening of the trough type and the requirement of fast rotation speed, hydraulic cylinders are currently used more for large trough types, and some large trough types also use large-sized single-axis rotary drive devices. For small troughs, the length of the collector is relatively short, which is very suitable for the installation and use of VE series vertical rotary drives.
Fresnel system
Suitable for installation and use of VE series vertical slewing drive.
