Product Details:
|
| Model: | Small Backlash Dual Axis 7 Inches | Material: | 42CrMn, QT |
|---|---|---|---|
| Duty Cycle: | 30 Years | Shipping: | By Air, Train, Sea, Express |
| Package: | Standard Export Package | Feature: | 360 Degree Tracking |
| Color: | Customized | Application: | Satellite Antenna Dishes |
| Highlight: | Satellite Antenna Dish Small Slewing Drive,Small Slewing Drive Backlash,Backlash worm slew drive |
||

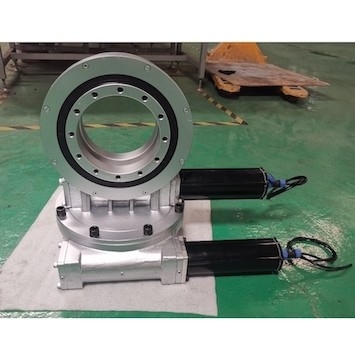

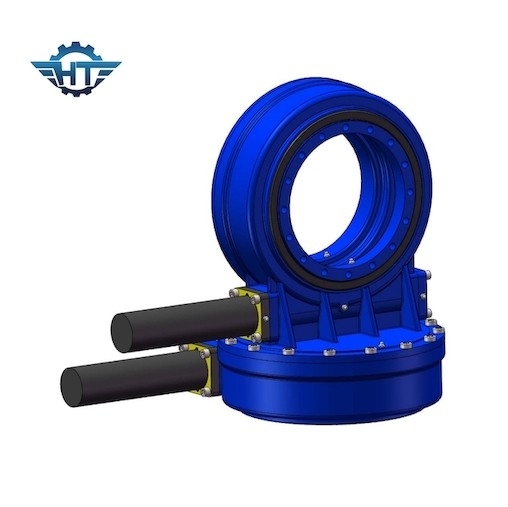

ZSDE7 Small Backlash Dual Axis Slewing Drive Gearbox For Satellite Antenna Dishes
Dual Axis Worm Gear Slewing Drive Description
Slewing drives are driven by hydraulic or electric motors. The slewing drive consists of a slewing bearing and a drive worm. A worm gear transmission transmits torque to the slewing ring, with optional gear backlash reduction. Slewing drives are available in a variety of configurations, with one or more drives, and single or double worm shafts. Lubrication can be carried out with grease or oil.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Q&A
1. How can i choose?
Please specify the wheel diameter size, width, voltage, power and no-load speed of the required motors.
2. Could I take samples to test quality and market in advance?
Sure, welcome to take samples to test our quality and service.
3. What's the total cost for samples?
Total sample cost= sample cost + freight
We will give you the best shipping cost after you choose the suitable gear motors
4. How do you ship samples?
Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex
5. What's your minimum order quantity?
10 sets after samples confirmed
6. What's your delivery time?
For standard samples: within 7days; for batch orders: within 25 days.
