Product Details:
|
| Model No.: | SDE1A-32MHD | Place Of Origin: | Changzhou, China |
|---|---|---|---|
| Production Time: | 3~45 Days | Application: | High Accuracy Satellite Antenna |
| Openness: | Closed | Holding Torque: | 6 KNm |
| Tilting Torque: | 9.2 KNm | Brand Name: | Hangtuo |
| Highlight: | 9 Inches Dual Axis Slew Drive,Dual Axis Slew Drive High Accuracy,High Accuracy Slewing Ring Drive |
||

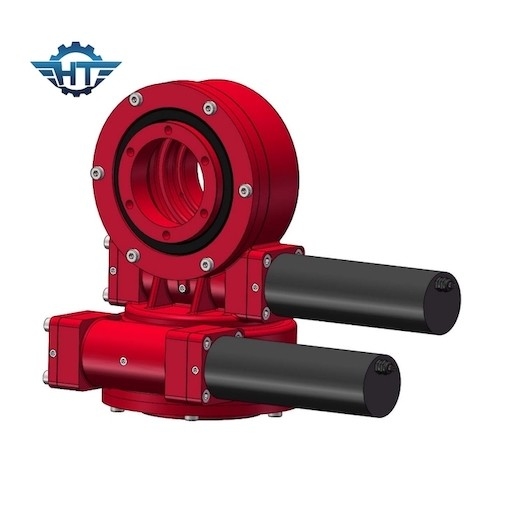

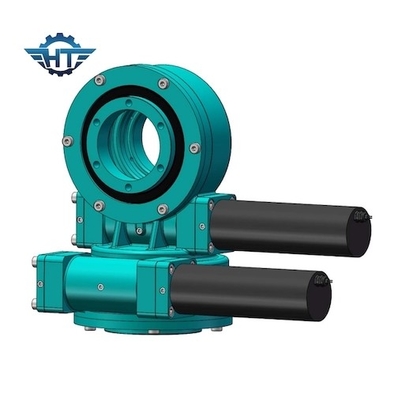

Custom Size Dual Axis Slewing Drive Reducer For High Accuracy Satellite Antenna
Description
Vertical and horizontal dual axis slewing drives are our premium product line. It is specially designed for the requirements of dual-axis tracking systems, and is a tailor-made solution for dual-axis tracking systems. We can also provide multiple sizes of slewing drives and slewing berarings for other applications. We can also help our customers to match a suitable hydraulic motor or DC motor. Our products export to all over the world.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Application
Solar dual-axis tracking system and single-axis tracking system
If the sun can be tracked in both the sun's altitude and azimuth, the most solar energy can be obtained, and full tracking, that is, dual-axis tracking, is designed according to such criteria. Compared with the optimal inclination angle power generation system, the dual-shaft power generation can increase by 25% to 40%. Due to the relatively high cost of dual-axis trackers, flat single-axis trackers are widely used in a large number of areas.
