Product Details:
|
| Specification: | SDE17 | Rated Output Speed: | 0~1 Rpm |
|---|---|---|---|
| Service: | OEM Design | IP Class: | IP66 |
| Color: | As Requested | Feature: | Corrosion-Resistant |
| Packaging: | Plywood Box | Motor: | Electric Motor |
| Highlight: | IP66 Electric Slewing Drive,High Axial Load Electric Slewing Drive,IP66 Slewing Drive For Solar Tracking System |
||

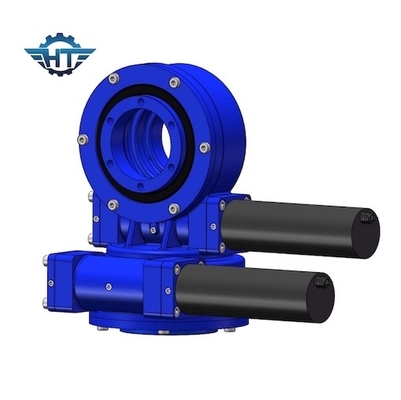

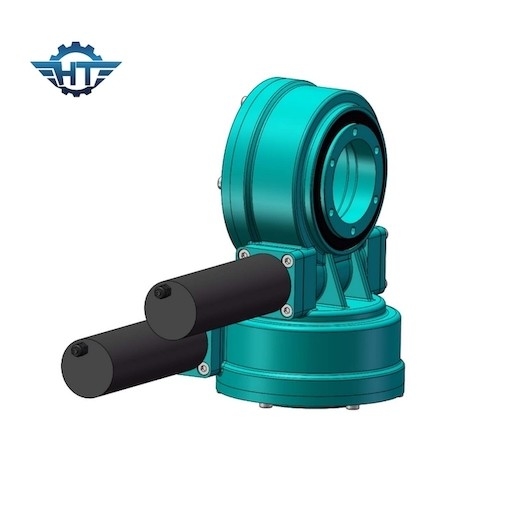

High Axial Load IP66 Dual Axis Slew Drive For 4m2 To 60m2 Solar Tracking System
Dual Axis Slew Drive Description
We produce high-torque, low-maintenance, long-life, compact, space-saving, and easy-to-maintain slewing drives. We can provide products with different clearances according to customer's system requirements.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Application
A dual-axis tracker allows your PV panels, fresnel, mirrors, concentrated PV, dish etc. to move on two directions, aligned both north-south and an east-west. They are designed to maximize your solar energy collection throughout the year. They can also track seasonal changes in the height of the sun. They greatly improve the power generation of the system. Our dual-axis slewing drive is a power unit that can make the solar panel face the sun and make the sun shine vertically on the solar panel at any time. It can carry large loads in intermittent omnidirectional motion at low speed.
