Product Details:
|
| Model: | VE9 Slewing Reducer | Feature: | Reverse Self Lock |
|---|---|---|---|
| Ratio: | 61:1 | Application: | Smart Tracking System |
| Driver Voltage: | 12V, 24V, 48V, 220V, 230V | IP Class: | IP66 |
| Color: | As Requested | Effciency: | 40% |
| Highlight: | Single Vertical Slewing Drive Motor,Slewing Drive Motor 48V,48V Solar Tracker Slewing Drive |
||

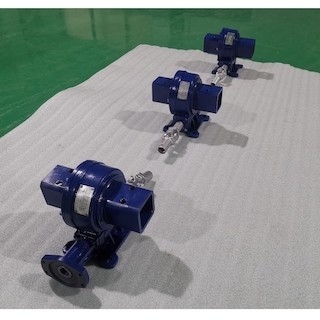

9 Inches Single Vertial Slewing Gear For Linkage One Axis Smart Solar Tracking System

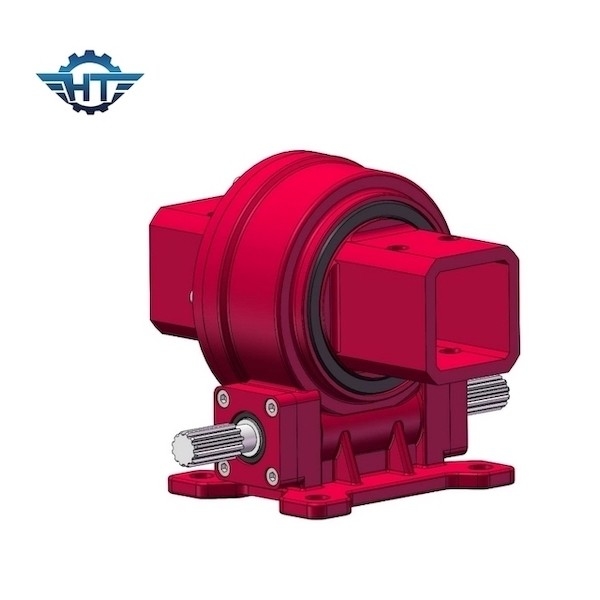

VE9 Vertical Slew Drive Gearbox Description
The gear reducer uses all levels of gear transmission to achieve the purpose of deceleration. The reducer is composed of gear pairs at all levels. For example, a small gear can be used to drive a large gear to achieve a certain purpose of deceleration, and then a multi-stage structure is used. , the speed can be greatly reduced.
VE9 vertical designing is the biggest bright spot of Hangtuo slewing drives ,the vertical designing is mainly used for the solar tracker system , the special structure simplifies the complex structure of the single axis solar tracking system bracket, reducing the cost of whole system, the vertical designing is playing a more competitive role in the solar tracker market.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
The most common slewing drive application for the dual-axis slewing drivesare dual-axis solar trackers, such as heliostats and concentrated photovoltaics (CPV), and satellite or radar dishes. Other applications include automotive lifts, robotic arm positioners, and stage equipment.
SDE Dual-Axis Positioner Specifications
