Product Details:
|
| Motor Type: | Electric Motor | Output Speed: | Adjustable |
|---|---|---|---|
| Application: | Solar Power System | Field Life: | 30 Years |
| Color: | Customer Required | Transport Package: | Customized Packaging |
| Motor Voltage: | 24V | Feature: | Reverse Self Lock |
| Highlight: | Planetary Transmission Solar Slew Drive,Parabolic Antenna Solar Slew Drive,VE5 Single Axis Slewing Drive |
||

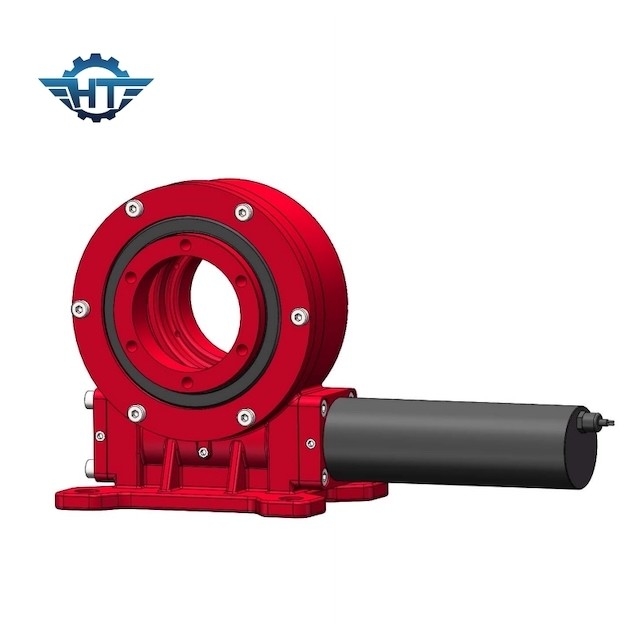

Self Lock Planetary Transmission Gearbox, VE5 High Precision For Parabolic Antenna
Self-locking VE5 Slewing Drive Description
Since the 21st century, the global climate and environmental problems have become increasingly prominent, and all countries in the world have paid more attention to the development of renewable energy. The use of solar energy for photovoltaic power generation has the characteristics of green, low-carbon and sustainable, and has become one of the important choices for the development of new energy in the world. The photovoltaic tracking system using the slewing drive device stands out and becomes a must-have product for photovoltaic tracking power generation systems.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
Using the slewing gear to realize the rotation of the photovoltaic tracking system can adjust the orientation of the components according to the lighting conditions, reduce the angle between the components and the direct sunlight, and obtain more solar radiation, thereby effectively improving the power generation efficiency.
