Product Details:
|
| Brand Name: | Hangtuo | Material: | 50Mn, 42CrMo |
|---|---|---|---|
| OEM: | Available | Certificates: | ISO9001, CE |
| Matched Motor: | Electrical Motor | Package: | Plywood Case |
| Color: | As Requirement | Precision: | ≤0.15° |
| Highlight: | High Precision Vertical Slewing Drive,Vertical Slewing Drive Gearbox Dual Axis,High Precision Dual Axis Slewing Drive |
||

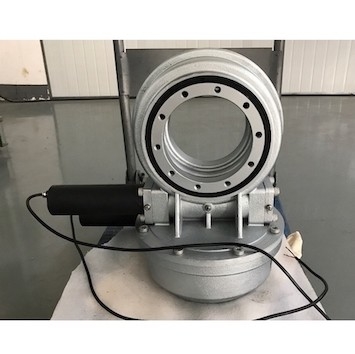

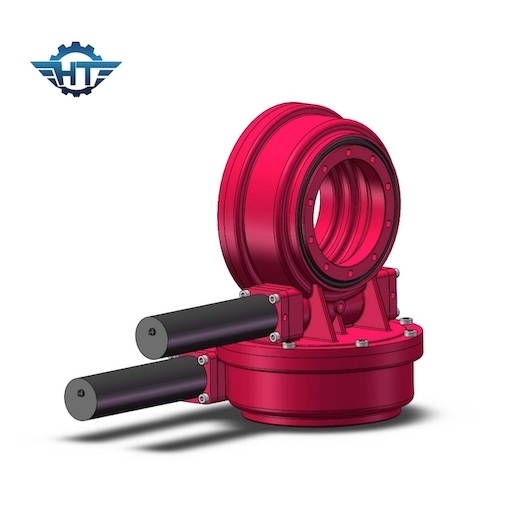

High Precision Dual Axis Slewing Drive Gearbox For Tower Concentrated Power Station
Dual Axis Slewing Drive Gearbox Description
Welcome to buy high quality and powerful worm gear dual axis rotary drive sun tracking system from our company, our company is one of the leading professional manufacturers and suppliers in China. We will test all our products for quality and reliability. Our dual axis drives are designed to create custom solutions with a 30-year field life. All our drives meet the standards set by ISO 9001, CE certification. Our dual axis slewing drives are designed to withstand heavy loads and withstand high strength without breaking. Our swing drives are manufactured using hourglass worm technology for improved gear mesh. Our products are traceable, each exported product has a contract order number, and the product serial number, production date, key component lot number, key material certificate, inspection report can be traced back to the batch of raw materials.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Qualilty Control
We have established the most professional testing laboratory in the rotary drive industry.
Raw Material Inspection Test: Portable Hardness Tester
Surface: Thickness Gauge
Electrical performance: motor torque tester
Anti-corrosion: salt spray tester
Anti-aging: UV testing machine
Thermal adaptation: high and low temperature box
Other jigs and fixtures
