Product Details:
|
| Type: | VE3 Worm Gear Drive | Place Of Origin: | Changzhou, China |
|---|---|---|---|
| Protection: | IP66, Enclosed | Function: | High Backholding Torque |
| Package: | Plywood Box | Warranty Period: | 5~10 Years |
| Application: | Solar Panel Tracking System | Corrosion Degree: | C4, C5 |
| Highlight: | 3 Inches Worm Gearbox With Motor,Heavy Load Worm Gearbox With Motor,Heavy Loading Slewing Drive Gearbox |
||

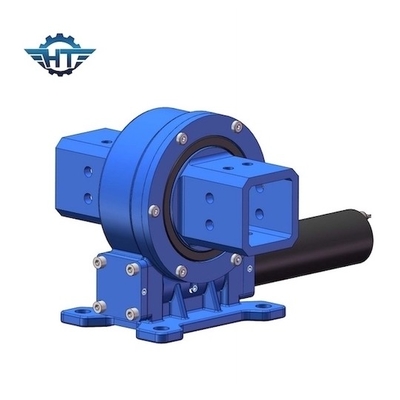

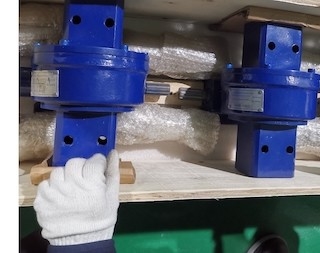

3 Inch Vertical IP66 Slew Drive Gearbox, Heavy Loading For Solar Panel Tracking System
Slew Drive Gearbox Description
VE6 slewing drive is a half gear and limit stop inside which is designed for a single axis solar tracking system. Our slewing drives are powered with hourglass worm technology for maximum gear torque and the smoothest rotation.
| 6 Inch Slewing Drive | |
| Brand | Hangtuo |
| Output Torque | 5100 N.m |
| Tilting Moment Torque | 8000 N.m |
| Holding Torque | 39000 N.m |
| Static Axial Rating | 110 kN |
| Gear Ratio | 51:1 |
| Tacking Precision | ≤0.15° |
| Net Weight | 12 kgs |
| Standard | CE/ISO |
| Place of Origin | China |
| Service | OEM service, Customized Solution |
| Material | 42CrMo, QT |
| Transport Terms | by sea, air, railway, express |
| Delivery Time | 3~45 Days |
| Nearest Port | Shanghai, Ningbo |
| Payment Terms |
T/T, Paypal |
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
The most common slewing drive application for the dual-axis slewing drivesare dual-axis solar trackers, such as heliostats and concentrated photovoltaics (CPV), and satellite or radar dishes. Other applications include automotive lifts, robotic arm positioners, and stage equipment.
