Product Details:
|
| Material: | 50Mn, 42CrMo | Model: | VE7 Single Axis |
|---|---|---|---|
| Gear Ratio: | 57:1 | Transport Package: | Standard Exporting Package |
| Holding Torque: | 60000 Nm | Tilting Torque: | 10000 Nm |
| Efficiency: | 40% | Standard Color: | As Requested |
| Highlight: | Hardened Steel Vertical Slewing Drive,Horizontal Vertical Slewing Drive,Horizontal Single Axis Slewing Drive |
||

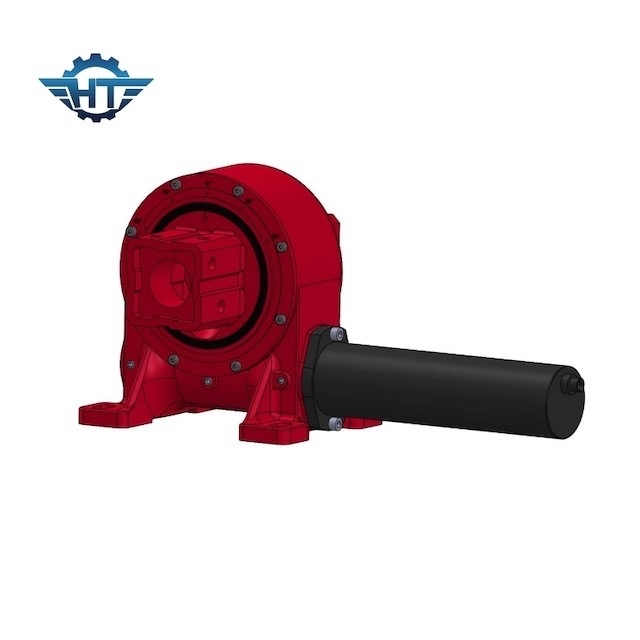

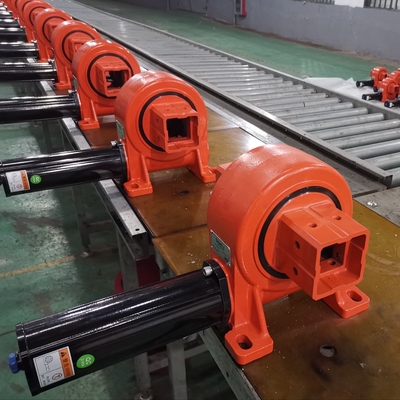

Hardened Material Worm Gear Vertical Slewing Gear For Horizontal Single Axis Trackers
Worm Gear Vertical Slewing Gear Description
Hangtuo is a professional manufacurer who can provide high permance and high precison slewing drive for solar energy and industrial applications. We devote ourselves to the R&D of customized slewing drive with high precision, special purpose and requirements. With abundant raw materials and high production efficiency, we can supply products to customers as quickly as possible and shorten the time for customers to wait for products. Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling inspection to ensure product quality. We have complete testing equipments and advanced testing method. We have strong after-sales service team, timely solve customer problems, to provide customers with a variety of services.
1.Raw material from reliable suppliers;
2.Production process is in strict accordance with ISO9001 Quality Management System;
3.Strict in-process quality control and 100% finished product inspection before delivery;
4.Third party product inspections are acceptable upon customer request.
5.Adoption of standardized product design process and APQP, PPAP, FEMA for application analysis.
6. OEM service
6.1 We provide standard products and non-standard products;
6.2 We provide customized samples, customized drawings, door-to-door mapping and other services;
6.3 We provide a full range of services, including design, processing, packaging, transportation, etc.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
