Product Details:
|
| Electric Motor: | Yes | Model: | VE7 Vertical Single |
|---|---|---|---|
| Gear Ratio: | 57:1 | Tilting Torque: | 10 KNm |
| Holding Torque: | 60 KNm | Shipping Way: | By Railway, Air, Sea, Express |
| Efficiency: | 40% | Standard Color: | Silver Grey |
| Highlight: | 7 Inches Vertical Slewing Drive,Self Lock Vertical Slewing Drive,Single Axis Solar Slew Drive |
||

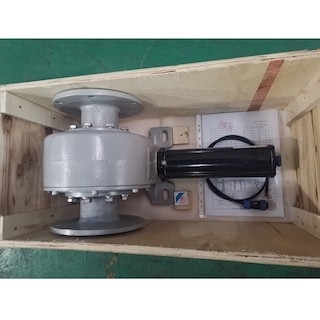

7 Inches Worm Drived Gearbox, Self Lock Enclosed House For Single Axis Solar Trackers
Worm Drived Gearbox Description
As an important part of the photovoltaic power station, the photovoltaic tracking bracket carries the main power generation of the photovoltaic power station. The choice of the photovoltaic slewing driver, which acts as a support bearing, will directly affect the damage rate, operation safety and construction investment of photovoltaic modules. Choosing a suitable tracker can not only reduce the project cost, but also reduce a lot of post-maintenance costs.

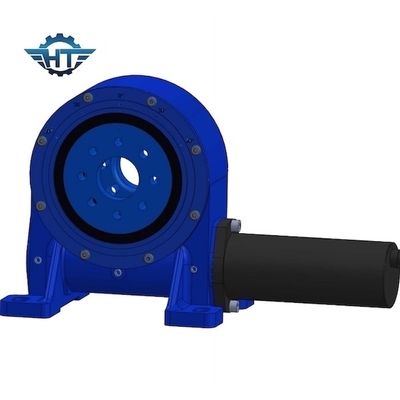

Hangtuo's slewing drive featured good enveloping worm and gear meshing and multi tooth contact that makes the slewing drive with high backholding torque to improve the solar tracking system's safety. It is self-locking and can rotate ±65 °. If more bigger range needed, it can be customized.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
Inclined single axis tracking tracking bracket
The mechanical connecting rod structure adopted has low cost and high reliability. It is especially suitable for power generation in mid-latitude regions, and the power generation efficiency is also improved than usual, and the improvement efficiency is at least 25% or more.
