Product Details:
|
| Type: | Slewing Gear Drive | Precision: | 0.15 ° |
|---|---|---|---|
| Application: | Solar Panel Tracking System | Warranty: | 10 Years |
| Color: | Customers' Required | Size: | 3 Inches To 25 Inches |
| Motor: | 24VDC, 220VAC | Duty Cycle: | 30 Years |
| Highlight: | 9 Inch Slew Drive Gearbox,Planetary Slew Drive Gearbox,Self Lock Slew Drive Gearbox |
||

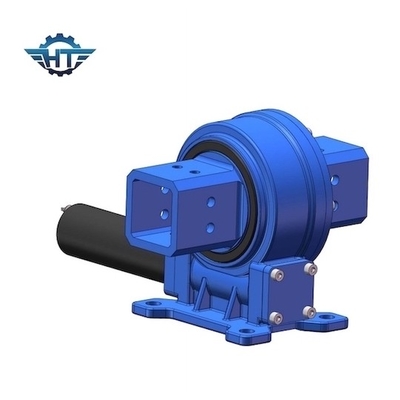

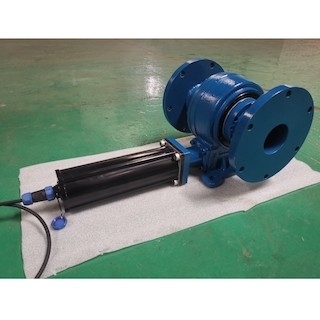

9 Inch Planetary Drived Slew Drive Gearbox For Single Axis Solar Panel Tracking System
Slew Drive Gearbox Description
Changzhou Hangtuo is a professional manufacturer and exporter of slewing drives, which are mainly applied in port machinery, mining machinery, welding machinery, construction vehicles, modular vehicles, single or dual axis solar tracking systems, and small wind power systems, satellite, antenna, robot, etc.
We are committed to keep the spirit of continuous improvement and focus our strategy of strict quality control standards, quick response, prompt delivery and low price.We look forward to working on all of our customers' growing demands. Our ability to optimize the bearing design for your specific needs is unparalleled and we will assist you throughout the design, manufacturing and implementation process.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Application
Inclined Single Axis Tracking Bracket System
The system capacity and flexible angle characteristics of the inclined single-axis tracking bracket make it suitable for various terrain requirements, so as to achieve the best power generation effect. The use of high-sealed rotary drive device can greatly improve the performance of the inclined single-axis tracking bracket, wear resistance, cope with various harsh working conditions, resist wind and sand, rain and snow weather, etc., and effectively protect the stability and safety of the bracket .
