Product Details:
|
| Model: | VE5" | Gear Ratio: | 37:1 |
|---|---|---|---|
| Transport Package: | Standard Exporting Plywood Cases | Efficiency: | 40% |
| Color: | As Requested | Application: | Horizontal Single Axis Solar Tracking System |
| Place Of Origin: | Changzhou, China | Trademark: | OEM, HT, Customized |
| Highlight: | 5" Electric Worm Drive,Horizontal Single Axis Electric Worm Drive,5" self locking worm drive |
||

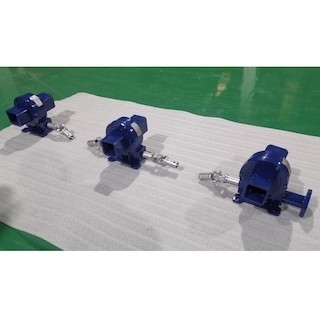

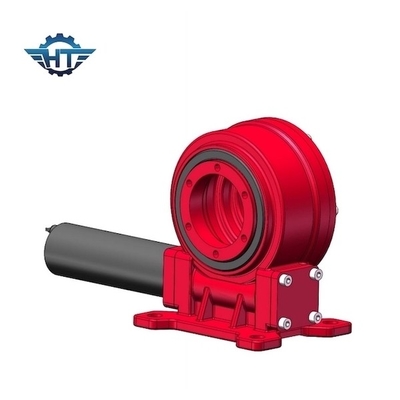

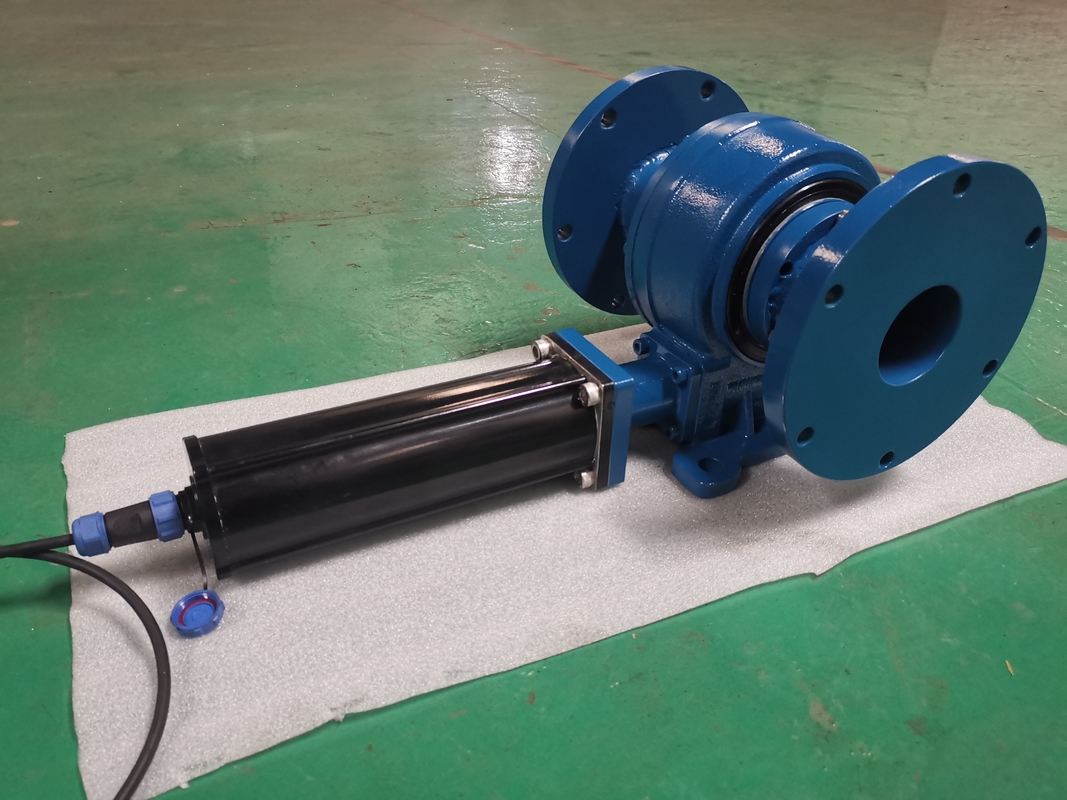

5 Inches Small Worm Gear Slew Drive For Horizontal Single Axis Solar Tracking System
Small Backlsh Slew Drive Description
The slewing drive is a new type of slewing product, usually called slewing ring, which is usually composed of worm, slewing ring, housing, motor and other components. For the core components are slewing bearings, they can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary products, the new slewing drive features easy installation, easy maintenance and a greater degree of installation space. We manufactured normal backlash type and small backlash type to cater customer's different applications.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
Application of Slewing Drive in Fresnel System
The Fresnel type CSP plant also belongs to the linear focusing system, which uses a plurality of almost flat mirror junctions (linear Fresnel mirrors with single-axis sun tracking) placed close to the ground, and the rotating tracking device always aligns the mirrors The sun reflects the sunlight to the secondary concentrator above, and then further gathers it on the tubular collector, and then heats the heat transfer medium to generate electricity.
