Product Details:
|
| Type: | SE1 Slewing Drive | Application: | Solar Trackers |
|---|---|---|---|
| Protect Feature: | Enclosed IP66 | Place Of Origin: | Changzhou, China |
| Material: | 42CrMo Or 50Mn | Warranty: | 5~10 Years |
| Mounting Holes: | 6xM6 | Weight: | 6 Kgs |
| Highlight: | 12VDC Worm Slew Drive,SE1 Slew Drive Motor,SE1 solar slew drive |
||

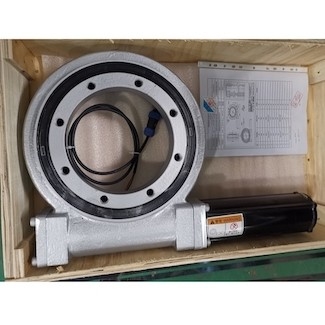

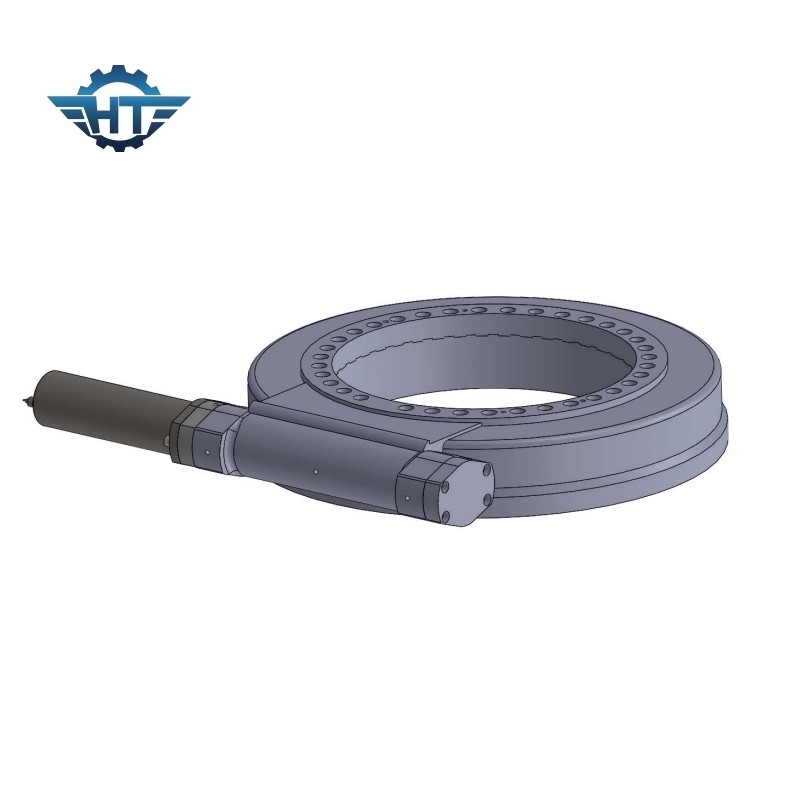

SE1 IP66 Enclosed Slew Ring Drive 12VDC Motor For Single Tracking System
Enclosed Slew Ring Drive Description
Hourglass worm technology provides more tooth contact, higher torque provide an economical and compact solution with low maintenance costs; slewing gear and raceway harden processing technology increase the slew drive lifetime; all slewing mechanism components are rigorously tested and have good quality assurance; customized design is available.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Slewing Drive Gear Motor
What is DC Gear Motor?
DC Gear motor is also called DC geared motor, geared DC motor and gearhead motor or gearbox motor. It consists of an electric DC motor and a gearbox; these gearboxes are used to reduce the DC motor speed, while increase the DC motor torque. Therefore could be used in applications which need lower speed and higher torque from gear motor.
What could these geared motor used for
They are playing an important role as a driver in the following applications:
1. Solar power energy
2. Home appliances
3. Robotics
4. Automotive
5. Torque transmission
| Optional | 60mm, 80mm, 90mm, 120mm, 160mm |
| Rated output torque | 8.5nm-680nm |
| Gear ratio Single-stage | 3, 4, 5, 7, 10 |
| Gear ratio Double-stage | 12, 16, 20, 25, 28, 35, 40, 50, 70 |
| Gear ratio Three-stage | 64, 80, 100, 125, 140, 175, 200, 250, 350, 400, 500, 700, 1000 |
| Return gap | 12arc-min~ 18arc-min |
Applications
Hydraulically driven photovoltaic tracking system using slewing drive
Hydraulic drive systems use hydraulic pumps to generate hydraulic pressure. Hydraulic pressure goes through valves, various pipes to hydraulic motors and hydraulic cylinders. The hydraulic motor and hydraulic cylinder transmit the mechanical motion adjusted as required to the linear or rotational motion required by the tracker.
