Product Details:
|
| Model: | VE9" | Installation: | Vertical |
|---|---|---|---|
| Gear Ratio: | 61:1 | Feature: | Reverse Self-locking |
| Package: | Plywood Case | Application: | Single Axis Solar Tracking System |
| Efficiency: | 40% | Tube Sizes: | As Requested |
| Highlight: | VE9 Worm Gear Vertical Slewing Drive,One Axis Vertical Slewing Drive,VE9 Worm Gear Slewing Drive |
||
VE9 Self Locking Worm Gear Drive For Horizontal Single Axis Solar Tracking System
Self Locking Solar Slew Drive Description
We are manufactured based on the standard which is required in the ISO9001 quality system. We have CE certification. The slew drive has a long lifespan and it is designed for 30 years field using life time.

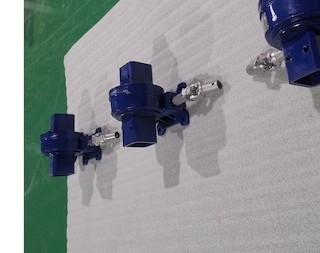

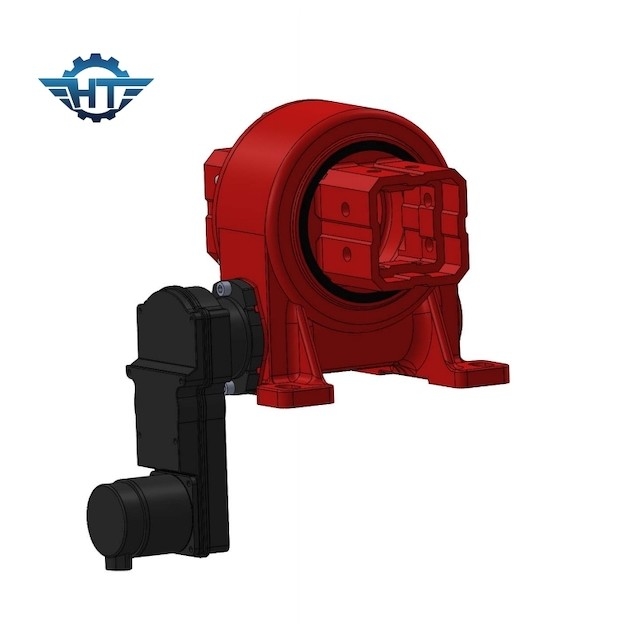

The 9 inch worm gear self locking vertical slew drives could be with square tubes or flange output. The squaretube usually is 94×94 mm, and we also developed with 110×110 mm tube size which is used flat single axis solar tracking system. The size could be customized based on customers' special demands. It features high IP grade which could protect the drive from various environment conditions such as dust, water, sand and even water.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
Vertical axis tracking system
The vertical axis tracking system is a rare single-axis tracking system. The photovoltaic array itself has a fixed inclination angle, and the photovoltaic array rotates in the horizontal direction with the rotation axis as the center.
