Product Details:
|
| Structure: | Worm And Wormwheel | Material: | 42CrMo, QT |
|---|---|---|---|
| Warranty: | 5 Years | Application: | Parabolic Solar Power System |
| Trade Mark: | Customized | Color: | Customized |
| Motor Voltage: | 24V DC | Sample Time: | 3~15 Days |
| High Light: | Small Worm Dual Axis Slew Drive,CSP Heliostat Dual Axis Slew Drive,CSP Heliostat small slew drive |
||
Small Worm Gear Slewing Ring Drive For CSP Heliostat And Parabolic Solar Power System
Slewing Ring Drive Description

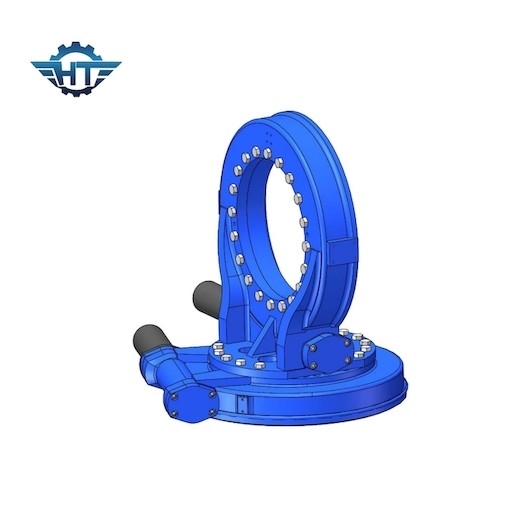

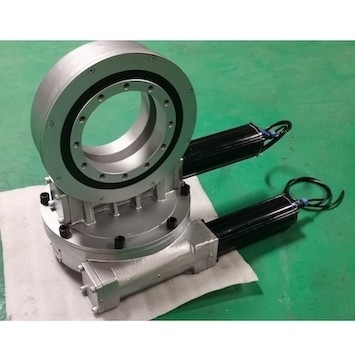

Our SDE series slewing drive mainly used for PV, STP, CSP solar tracking systems, this model is dual axis for horizonal and elevation directions. It can be used for 10 square meters of solar panels. We are committed to researching, developing and applying high quality, precision slewing drives, we provides reliable horizonal single axis, dual-axis slewing bearings and slewing drives for solar tracking systems, CSP,CPV solar trackings etc. Our professional and high-quality products will be also applied well as a steady solution on aerial working platform, truck crane, timber grab, drilling rig, spray equipment, hydraulic module vehicle,automated assembly lines, wind yaw systems,etc.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Applications
Tower CSP system
Because there are many tower mirrors, the amount of rotary reducer is the most in tower projects. The tower power station adopts the rotary reducer as the driving component in the horizontal azimuth around the world, and the pitch angle can be selected from the push rod or the rotary reducer. Different thermal power generation EPC manufacturers adopt different structural designs. Since the tower power generation is equipped with many large solar reflectors on a large area of the site, each is equipped with a tracking mechanism, which can accurately reflect the sunlight to the receiver on the top of a high tower. This puts forward higher requirements on the mechanical transmission accuracy, service life, maintenance-free and rigidity of the rotary drive device.
