Product Details:
|
| Place Of Origin: | Changzhou, China | Function: | High Torque |
|---|---|---|---|
| Protect Feature: | Enclosed | Type: | Slewing Drive |
| Material: | 42CrMo Or 50Mn | Warranty: | 5~10 Years |
| Application: | Single Axis Solar Tracking System | Color: | Customer Required |
| High Light: | hydraulic slew motor,solar tracker drive |
||

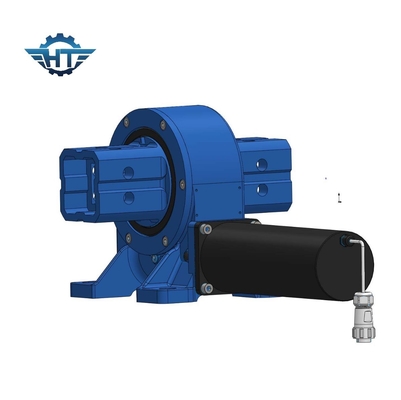

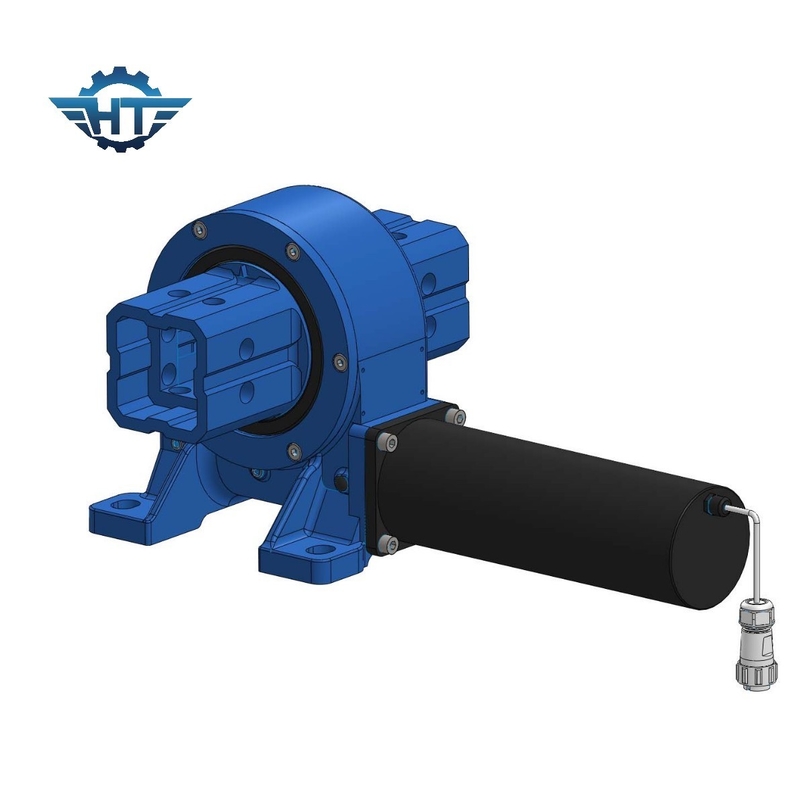

Single Axis Solar Tracking System VE6 Vertical Solar Slew Drive With Enclosed Housing
VE6 Vertical Solar Slew Drive Description
The VE6 slewing drive is a type of gear mechanism used in various industrial and renewable energy applications, particularly in solar tracking systems. The VE6 slewing drive consists of a gearbox mechanism that enables rotational movement, typically with a worm gear system. It's designed to support axial, radial, and moment loads simultaneously. The primary function of the slewing drive is to transmit torque smoothly and efficiently. The VE6 variant is optimized to provide a specific torque output suitable for the intended application, balancing between the requirements of the system and the available power source.
VE Model Performance Parameters
| Model | Rated Output Torque (N.m) | Holding Torque (N.m) | TiltingTorque (N.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Precision (degree) | Precision(°) | IP | Self-locking | Weight (kg) |
| 3" | 600 | 1800 | 1500 | 22 | 15 | 31:1 | 40% | ≤0.1 | 66 | Yes | 12kg |
| 5" | 800 | 9200 | 5000 | 16 | 27 | 37:1 | 40% | ≤0.1 | 66 | Yes | 18kg |
| 7" | 1750 | 13200 | 7000 | 34 | 58 | 57:1 | 40% | ≤0.1 | 66 | Yes | 32kg |
| 8" | 2250 | 20400 | 11200 | 50 | 80 | 51:1 | 40% | ≤0.1 | 66 | Yes | 28kg |
| 9" | 4300 | 30800 | 16000 | 60 | 130 | 61:1 | 40% | ≤0.1 | 66 | Yes | 52kg |
| 12" | 5600 | 40560 | 25000 | 77 | 190 | 78:1 | 40% | ≤0.1 | 66 | Yes | 65kg |
| 14" | 6750 | 44200 | 48000 | 110 | 230 | 85:1 | 40% | ≤0.1 | 66 | Yes | 88 kg |
| 17" | 9460 | 53040 | 67000 | 142 | 390 | 102:1 | 40% | ≤0.1 | 66 | Yes | 135 kg |
| 21" | 16000 | 65000 | 89000 | 337 | 640 | 125:1 | 40% | ≤0.1 | 66 | Yes | 192 kg |
| 25" | 21450 | 89000 | 112000 | 476 | 950 | 150:1 | 40% | ≤0.1 | 66 | Yes | 251 kg |
Applications
Typical slew drive applications include solar industry, truck cranes, man lifts, and utility equipment, hydraulic attachments, oil tool equipment, marine cranes, tire handlers, digger s and automotive lifts, but the slew drives are used in many other applications requiring load holding and rotational capability. We offer different slew drive models with different moment load capacities.
