Product Details:
|
| Place Of Origin: | Changzhou, China | Product Name: | SDE3 Dual Axis Slewing Gear |
|---|---|---|---|
| Certificates: | CE, ISO9001 | Structure: | Worm And Gear |
| Application: | Solar Trackers | Protect: | IP66 |
| Color: | Silver | Warranty: | 3~5 Years |
| High Light: | Dual Axis Solar Tracker Slew Drive,CSP Slew Drive Motor,CSP Solar Slew Drive |
||

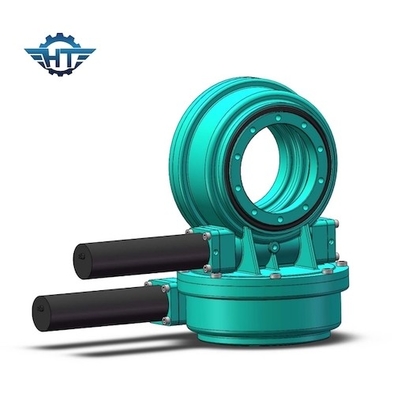

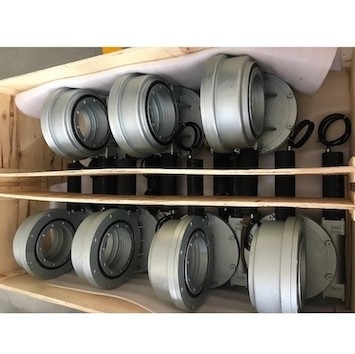

Small Dual Axis Solar Tracker Slew Drive With Double Envelope Worm And Helical Gear For Solar
Description
Worm gear slewing drive, also known as reducer, is widely used in mechanical products. According to its use occasions and fields, its specific functions and functions are mainly to decelerate, increase torque, reduce the inertia of the moving mechanism, and lock mechanism, reduce product production costs, and optimize mechanical structure design.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Planetary Gear Motor Features
1. Diameter of motor: 22mm, 32mm, 42mm, 52mm, 60mm, 80mm, 90mm, 105mm, 120mm
2. Power: 10w to 900W
3. Voltage: 24V, 36V, 48V, 100V, 110V, 220V, 230v
4. Speed ratio: 3.7-307.5
5. Optional: gear box, speed controller, encoder, power supply
6. High dependability and reliability
Application
The dual-axis slewing drive device is applied to the dual-axis solar tracking system. The vertical-horizontal slewing drive device has the advantages of compact structure and omnidirectional tracking of the sun's trajectory, which makes the dual-axis solar tracking system have a larger working space and better tracking performance. High rigidity, low energy consumption, small starting torque and low inertia.
