Product Details:
|
| Type: | SE14 Slewing Drive | Material: | Harden Steel |
|---|---|---|---|
| Warranty: | 18 Months | Optional Sizes: | 1 Inch To 25 Inches |
| Application: | Construction Machinery | Color: | As Requested |
| Installation Site: | Open Field | IP Class: | IP66 |
| Highlight: | AC Motor Slew Ring Drive,14 Inches Slew Ring Drive,14 Inches worm slew drive |
||

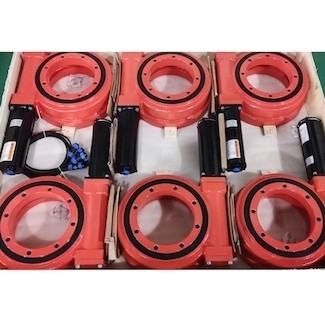

14 Inches High Tilting Torque Slew Ring Drive With AC Motor For Construction Machinery

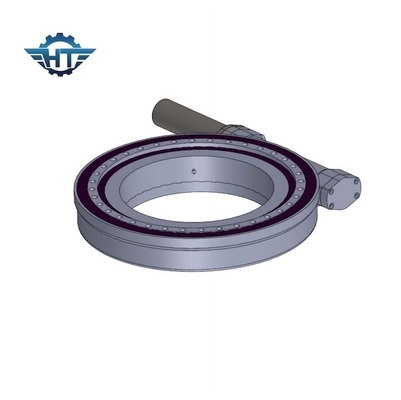

Slew Ring Drive Description
A: Bearing inner ring+ball+bearing outer ring = BEARING
B: worm+wormwheel = Worm and wormwheel structure
If adding gear to the outer ring of the bearing, then A and B become a slew drive.
Maintain advantages: large torque, good sealing, high bearing force of the end cover.
It can be matched with AC motor, DC motor, synchronous motor, brushless motor. There are also other motors could be matched, no matter what motors we choose, basically we need to look at some parameters: 1. Rated power/torque during normal operation 2. Normal power/ torque during a stable state; 3. Tracking accuracy; 4. adapt to temperature environment; 5.IP grade, waterproof, dustproof; 6. Economic reference; 7. service life; 8. Tracking speed, etc.
Why tracking systems?
Because of sunrise and sunset…
Wrong – the sun doesn’t rise and set.
But it appears to rise and set because of the Earth’s rotation on its axis.
So solar trackers are counteracting Earth’s rotation.
SE Model Performance Parameters
| SE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Tilting Torque (kN.m) |
Holding Torque (kN.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency | Precision (degree) |
IP | Working Tep (℃) |
Self-locking | Weight (kg) |
| 1" | 400 | 1 | 2 | 22 | 12 | 32:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 6 |
| 3" | 806 | 1.5 | 3 | 30 | 16 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 8 |
| 5" | 962 | 6 | 9 | 68 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12 |
| 7" | 7344 | 13.5 | 12 | 132 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 21 |
| 9" | 8784 | 45 | 30.8 | 340 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 49 |
| 12" | 11232 | 54 | 45 | 480 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 61 |
| 14" | 11232 | 68 | 54 | 680 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 63 |
| 17" | 11232 | 135 | 65 | 980 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 105 |
| 21" | 18000 | 203 | 81 | 1600 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 149 |
| 25" | 18000 | 271 | 89 | 2400 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 204 |
Applications
Portal cranes for port handling and hydropower station construction, towers for building construction
Cranes and general inland port cranes, etc.
Jib type mobile slewing cranes, such as automobile type, tire type, crawler type, railway type, floating type, etc.
In overhead cranes with slewing jib or slewing device trolley. It is mainly used under special conditions that require the expansion of the working range beyond the span of the bridge crane or to meet certain technological requirements. Such as: metallurgical cranes for charging cranes in open hearth furnaces, clamp cranes for soaking furnaces in blooming mills, rake cranes for billet warehouses, etc., all equipped with slewing mechanisms.
