Product Details:
|
| Place Of Origin: | Changzhou, China | Model: | 9 Inches |
|---|---|---|---|
| Gear Ratio: | 61：1 | Application: | Solar Panel Tracker Mounting System |
| Driver: | Stepper Motor | Certificate: | ISO9001, CE |
| Maintenance: | Free | Backlash: | ＜0.1 |
| High Light: | SE9 Electric Slewing Drive,ISO9001 Electric Slewing Drive,SE9 slewing drive for solar tracking system |
||

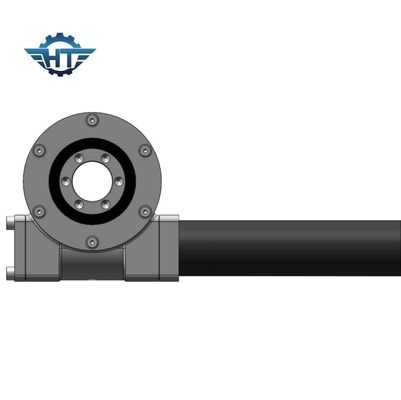

SE9 Electric Slewing Drives For Single Axis Solar Panel Tracker Mounting System
Model Number: SE9
Condition: 100% new
After-sales service: Engineers available to service machinery overseas
Output Torque: 4.4 kN.m
Tilting Moment Torque: 45 kN.m
Holding Torque: 30.8 kN.m
Static Axial Rating: 340 kN
Static Radial Load: 130 kN
Gear Ratio: 61:1
Electric Motor: 12VDC,24VDC, 48VDC, 220VDC
Optional Items: DC, AC Motor, Encoders, Hall Sensors
Delivery Time: Within 15 working days after order confirmed and payment received.
For outdoor or indoor humid environment such as the seaside, desert etc., and SE enclosed series slewing drive is the optimized solution. With a fully sealed design can meet your field use requirements.
SE Model Performance Parameters
| SE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting |
Holding |
Axial |
Radial |
Ratio | Efficiency |
Precision |
IP |
Working Tep |
Self-locking |
Weight |
| 1" | 400 | 1 | 2 | 22 | 12 | 32:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 6 |
| 3" | 806 | 1.5 | 3 | 30 | 16 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 8 |
| 5" | 962 | 6 | 9 | 68 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12 |
| 7" | 7344 | 13.5 | 12 | 132 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 21 |
| 9" | 8784 | 45 | 30.8 | 340 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 49 |
| 12" | 11232 | 54 | 45 | 480 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 61 |
| 14" | 11232 | 68 | 54 | 680 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 63 |
| 17" | 11232 | 135 | 65 | 980 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 105 |
| 21" | 18000 | 203 | 81 | 1600 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 149 |
| 25" | 18000 | 271 | 89 | 2400 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 204 |
Features
1) optimal design with enclosed housing, it is thinner, higher strength, and full sealed design, which suitable for use in the wild
2) designed with full sealed which can effectively prevent corrosion of wind, sand, water on the device.
3) self-locking
Applications
Enclosed SE series slewing drive is widely used in the construction machines and solar field as a rotation part. The main applications are as follows:
1) Concentrated solar power, solar PV tracking power station
2) Aerial platform
3) Drive the crane truck arm
Contact Person: Mr. Tommy Zhang
Tel: +86-18961639799
