Product Details:
|
| Model: | 3 Inches | Gear Ratio: | 31:1 |
|---|---|---|---|
| Efficiency: | 40% | Color: | As Requested |
| Application: | CPV, CSP, PV | Place Of Origin: | Changzhou, China |
| Driver: | Electric Motor | Certificates: | ISO9001, CE |
| Encoder: | Optional | Installation: | Horizontal, Vertical |
| Highlight: | Electric Motor Small Slew Drive,Small Slew Drive 3 Inch,CPV System slew drive motor |
||

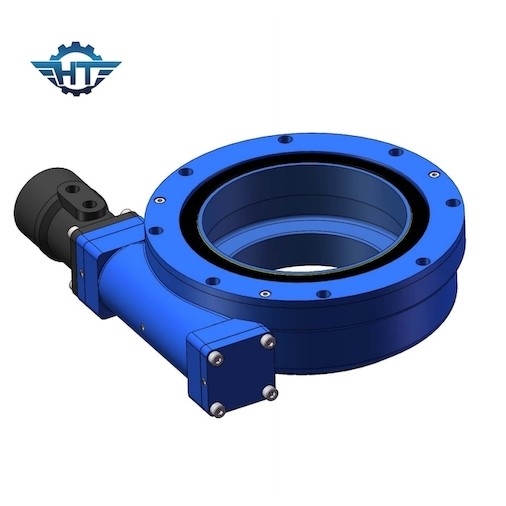

Customized 3 Inch Small Slew Drive With Electric Motor For Horizontal PV Tracker
Small Slew Drive Description
For slewing drive, there are 10 different sizes available from 1" to 25" with more than 60 models to meet both regular and precise tracking requirements in PV, CPV and solar thermal power tracking fields.
Hangtuo has implement strict quality control system, meanwhile, we have passed ISO9001-2008 quality system certification.
Technical Date of SE Series Slewing Drives
| Model | Ratio | Rated Output Torque | Tilting Torque | Holding Torque | Axial Load | Radial Load | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | N.m | kN | kN | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 7000 | 30 | 15 | 40% | ≤0.1 | Yes | 9kg |
| 5" | 37:1 | 637.5 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 14kg |
| 7" | 57:1 | 1750 | 10500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 23kg |
| 9" | 61:1 | 4300 | 49900 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 44 kg |
| 12" | 78:1 | 5600 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 51 kg |
| 14" | 85:1 | 6750 | 135000 | 44200 | 680 | 230 | 40% | ≤0.1 | Yes | 62kg |
| 17" | 102:1 | 9460 | 203000 | 53040 | 980 | 390 | 40% | ≤0.1 | Yes | 85kg |
| 21" | 125:1 | 16000 | 271000 | 65000 | 1600 | 640 | 40% | ≤0.1 | Yes | 141kg |
| 25" | 150:1 | 21450 | 346000 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 182kg |
Shipping And Package
Shipping
All available shipping ways could be applied, by courier, air or sea.
An appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargoes for you before the goods arrive.
Working testing equipment to ensure every product can work normally before out of the factory,
our products are 100% been tested.

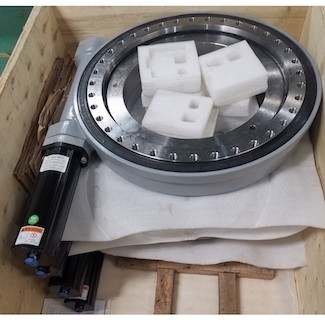

Package
The package is different from the size of the slewing drives, we can package as you like, our package is very tigt, and ensure that the product won't shake during shipping.
Applications
The slewing drives can be applied in flat single axis solar tracking system. The flat single-axis tracking system is suitable for installation in the middle and low latitudes. Its principle is that according to the position of the sun, the intermittent drive motor drives the mechanical mechanism, so that the photovoltaic modules follow the position of the sun, thereby reducing the incident angle of sunlight and improving the visibility of the modules to the sun. The absorption rate of radiation greatly increases the power generation of the system.
