Product Details:
|
| Type: | 5 Inches | Gear Ratio: | 37:1 |
|---|---|---|---|
| Efficiency: | 40% | Application: | CSP |
| OEM Service: | Available | Place Of Origin: | Changzhou, China |
| Driver: | Stepper Motor | Delivery Time: | 7 Days |
| Corrosion Protection: | C4,C5 | ||
| Highlight: | SE5 Electric slew drive,Self locking electric slew drive,SE5 slewing ring drive |
||

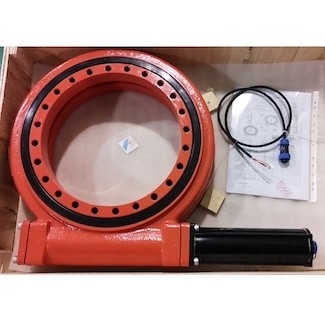

SE5 High Precision Stepper Motor Driven Slew Drive For Concentrated Solar Power CSP
CSP Small Worm Gearbox

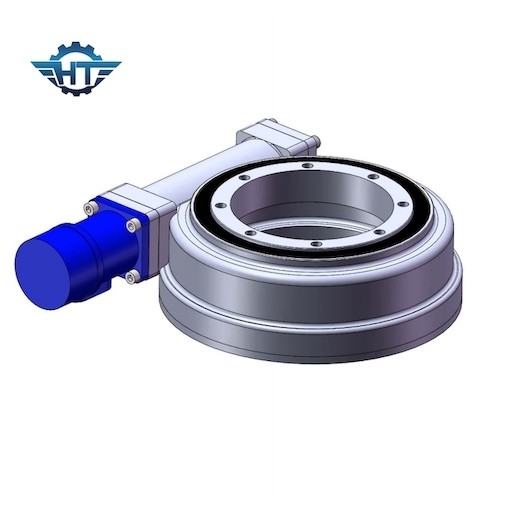

A worm gearbox design slewing drive is a compactly constructed unit which consists of a hourglass worm, gear, enclosed IP66 housing, base and other accessories. This unit brings the advantages.
Advantages
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self-locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Applications
It is suitable for applications which demand slow rotation with a continuous or movement capable of handling combined loads. The product is with standard dimensions for coupling an electric or hydraulic motor as well as coupling a whole system to equipment.Due to its compactness, high rigidity and other mentioned advantages, a worm drive system is used in various equipments.
The solar thermal power generation system is different from the commonly used photovoltaic power generation system. It uses a reflector to reflect and focus the sunlight into the heat collection system, heat the working material to form steam, and drive the steam turbine to generate electricity.
