Product Details:
|
| Product Name: | Worm Gear Slew Drive | Place Of Origin: | Changzhou, China |
|---|---|---|---|
| Axial Load Capacity: | Up To 1600kN | Tilting Moment Torque (MAX.) Tilting Moment Torque (MAX.): | 203400 N.m |
| Color: | Black | Gear Ratio: | 125:1 |
| Input Shaft: | Solid | Circle Diameter: | 520 Mm |
| Highlight: | worm drive gearbox,worm gear motor |
||

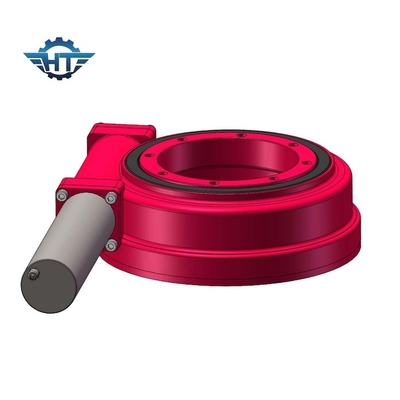

42CrMo & 50Mn QT450 Worm Gear Slew Drive SE21, 271000Nm Tilting Torque
Worm Gear Big Slew Drive Description
Material we can work on : 42CrMo, 50Mn, QT450
Processing of gear: forging, machining, hobbing, milling, shaping , shaving, grinding, heat treatment.
Heat Treatment: Nitriding.
SE21 Slew Drive Techical Specifications
| Model Number | SE21 |
| Brand Name | Hangtuo |
| Gear Ratio | 150:1 |
| Output Torque (Nm) | 21450 |
| Tilting Torque (Nm) | 271000 |
| Holding Torque (Nm) | 65000 |
| Weight (kgs) | 145 |
| Working Temperature (℃) | -30～+120 |
| Place Of Origin | Changshu, China (Mainland) |
| Inspect | Full inspection |
| Processing | Forging/machining/coating/assembly |
| Service | 24 hours online |
Additional Information
| Min. Order Quantity | 5 units, sample order available |
| Port | China seaport ningbo/shanghai |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | Lead time 20-40 days |
| Packaging Details | Wooden case free from fumigation |
