Product Details:
|
| Material: | 50Mn, 42CrMo | Model: | 7 Inches |
|---|---|---|---|
| Gear Ratio: | 57:1 | Max Output Torque: | 5060 Nm |
| Holding Torque: | 40 KNm | Tilting Torque: | 5 KNm |
| Efficiency: | 40% | Company History: | Since Year 2018 |
| Highlight: | Enveloping Small Slew Drive,OEM Small Slew Drive,OEM Solar Slew Drive |
||

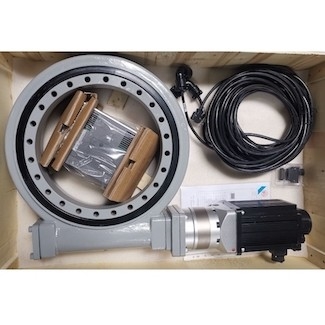

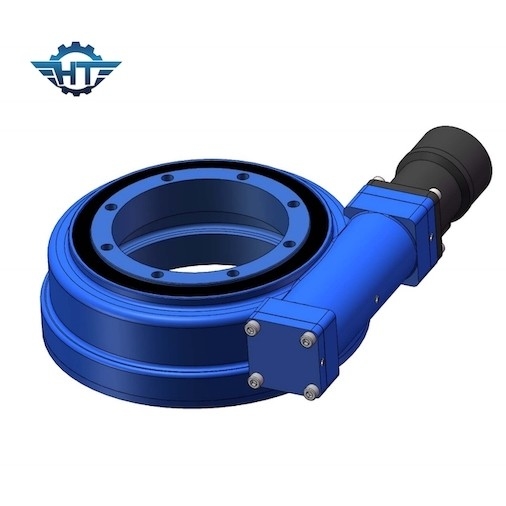

SE7 Worm Gear Enveloping Small Slew Drive For Solar Power Panel Tracking System
Worm Wheel Gear Drive Description
We devote ourselves to the R&D of customized slewing drive with high precision,special purpose and customised requirements. With high quality raw materials and high production efficiency, we can supply products to customers as quickly as possible and shorten the time for customers to wait for products.
Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling inspection to ensure product quality. And we have complete testing equipment and advanced testing method.
We also have strong after-sales service team, timely solve customer problems, to provide customers with a variety of services.
Advantages
Small order accepted
Best quality and price
ISO and CE certified company
Various models
Extensive stock available
OEM accepted
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Applications
Including but not limited to mine machine, port hoisting machine, port oil transfer equipment, onshore and offshore crane, excavator, concrete machine, paper machine, plastic and rubber machine, weave machine, steel plant, electronic power plant, wind power generator, other construction and industry machines or equipments.
