Product Details:
|
| Model: | Zero Backlash 3 Inches | Gear Ratio: | 31:1 |
|---|---|---|---|
| Application: | Parabolic Though And Heating Tower | Place Of Origin: | Changzhou, China |
| Driver: | 24VDC Gear Motor With Encoders | Installation: | Horizontal Mounted |
| Color: | As Requested | Backlash: | Less Than 0.03 Degree |
| Highlight: | worm drive gearbox,worm gear slewing ring |
||

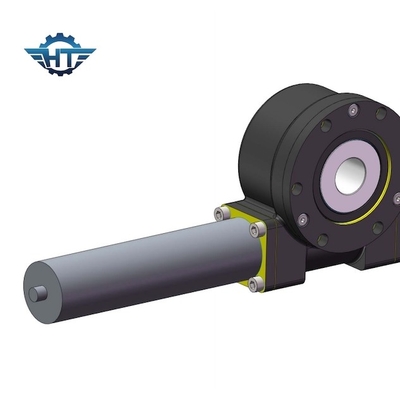

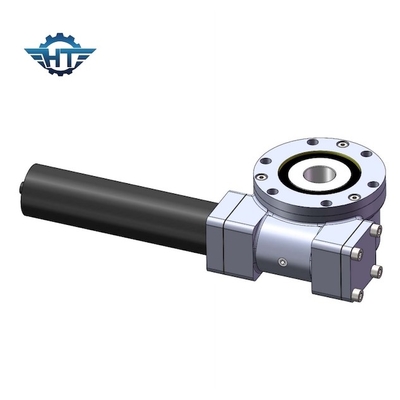

Zero Backlash Single Axis Worm Drive Gearbox For Parabolic Though And Heating Tower
Single Axis Worm Drive Description
A worm gear box is composed of a slewing ring, worm, casting housing, and standard components like bearing and bolts, etc. Slewing drive is able to sustain more axial load, radial load and tilting moment. Turntable or frame rotates at azimuth and elevation driven by slewing drive. Zero backlash slewing drive is a special slewing drive with its gear and worm having a perfect mesh and also has reasonable gaps of lubrication and operating heating.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Applications
Typical slewing drive applications include solar power plants, wind turbines, truck cranes, aerial work vehicles, utility equipment, hydraulic equipment, petroleum equipment, wheel steering equipment, excavators and automatic lifts. There are many other applications that cannot be listed exhaustively, as swing drives are the choice for applications requiring high loads and high torques on the same transmission.
