Product Details:
|
| Function: | Reduce Speed Increase Torque | Model: | 5 Inches |
|---|---|---|---|
| Certifications: | ISO9001, CE | Protect: | Enclosed IP66 |
| Material: | 42CrMo Or 50Mn | Warranty: | 5~10 Years |
| Tube Size: | Customized | Place Of Origin: | Changzhou, China |
| Highlight: | 5 Inch Solar Slewing Drive,Slewing Drive For Solar Tracker 42CrMo,42CrMo slewing bearing drive |
||

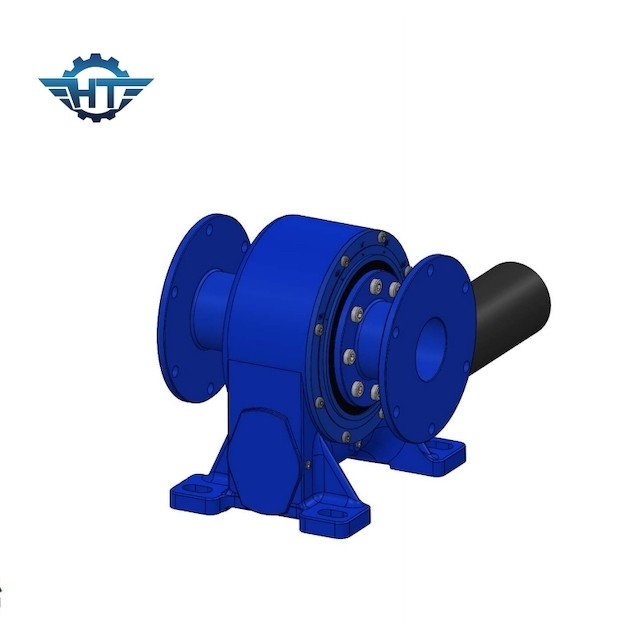

IP66 Sealed 5 Inches Compact Solar Slewing Drive For Single Axis Solar Tracking System
Slewing Drive Description
The tracking system has performed well in increasing the power generation and reducing the cost of electricity, and has gradually become the main force in the construction of global photovoltaic power plants. However, in the process of practical application, the stability of the power station is also constantly exposed, especially the damage of the tracking bracket caused by the wind-induced resonance, which has become the number one problem that threatens the safety of the power station, and also puts forward higher requirements for the slewing drive.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
1) Solar Trackers 2) Construction Machinery 3) Hydraulic Machinery 4) Habor Machinery 5) Wind Turbines 6) Man Lifts 7) Telescopic Handlers 8) Digger s 9) Lifts 10) Cranes 11) Drilling equipment 12) Military Equipment 13) Turn tables 14) Truck mounted cranes
