Product Details:
|
| Material: | 50Mn, 42CrMo | Model: | 17 Inches |
|---|---|---|---|
| Gear Ratio: | 102:1 | Rated Output Torque: | 9400 Nm |
| Tilting Torque: | 135600 Nm | Holding Torque: | 65040 Nm |
| Transport Package: | Wooden Cases | Application: | Solar Trackers |
| Highlight: | SE17 Single Axis Slewing Drive,9400Nm Solar Tracker Drive,9400Nm worm drive slew ring |
||

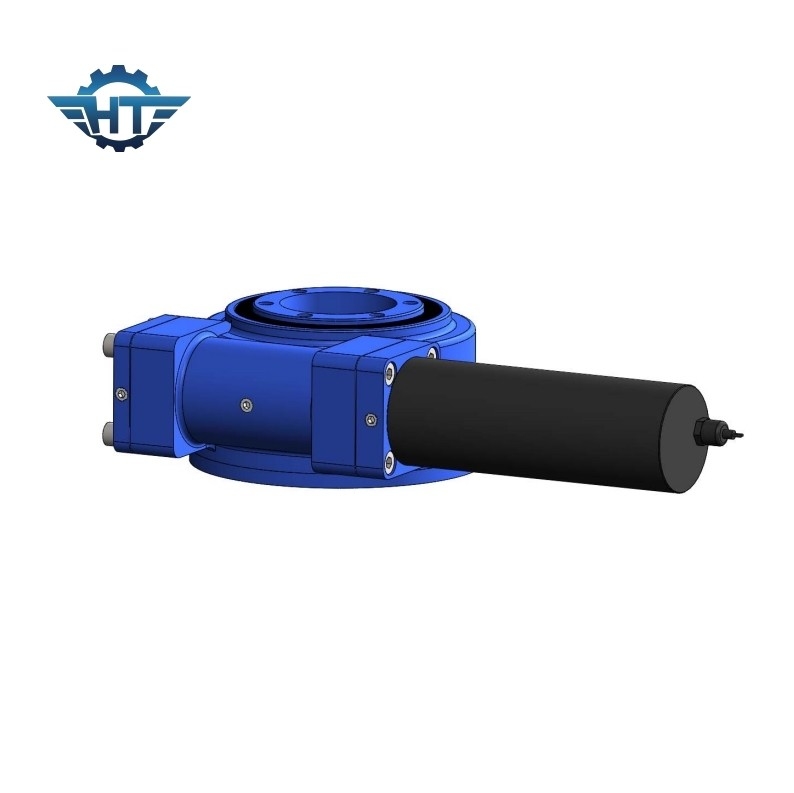

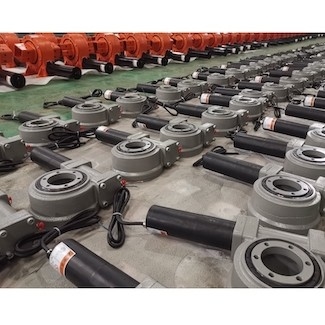

SE17 Enveloping Worm Gear Drive With IP66 Enclosed Housing For Solar Trackers
Single Axis Slew Drive Description
SE slew ring bearing drive can bear axial force. It is designed in compact structure for construction machinery, habor machinery, aerial platform vehicle, military, etc. It is also widely used in solar tracking system to produce an efficient solar generation system such as single axis solar tracking system and dual axis solar tracking system.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
SE17 Slew Drive Parameter
| Product Name | SE17 Slew Drive |
| Output Torque | 9400 N.m |
| Tilting Moment Torque | 135600 N.m |
| Holding Torque | 65040 N.m |
| Static Axial Rating | 980 kN |
| Static Radial Rating | 390 kN |
| Dynamic Axial Rating | 490 kN |
| Dynamic Radial Rating | 245 kN |
| Motor Alternatives | 380V/220V AC Motor, DC Motor |
| Products Style | Dual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar Tower |
| Application Feature | Solar Tracking System, Industrial Machinery |
Applicatons
Flat single axis tracking
Among the tracking methods, flat single-axis tracking is the most commonly used method. It is divided into north-south axis tracking and east-west axis tracking. East-west axis tracking has no obvious advantages over fixed inclined installation, and the effect of north-south axis tracking is better than that of east-west axis tracking. . Flat single-axis tracking is especially suitable for low latitude areas
