Product Details:
|
| Model: | SE1 | Holding Torque: | 1800 Nm |
|---|---|---|---|
| Tilting Torque: | 1000 Nm | Output Torque: | 400 Nm |
| Static Axial Load: | 22 KN | Static Radical Load: | 12 KN |
| Raw Material: | QT | Weight: | 6 Kg |
| Highlight: | solar slew drive,slewing drive for solar tracking system |
||
High Performance Small Size Slew Drive For Solar Renewable Energy
Small Size Slew Drive Description

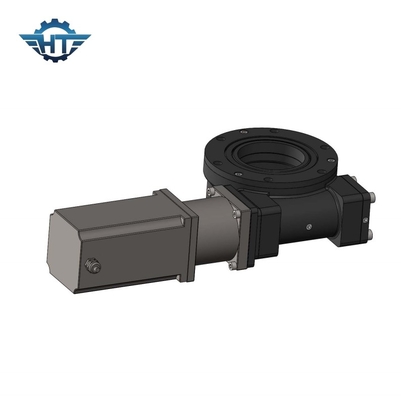

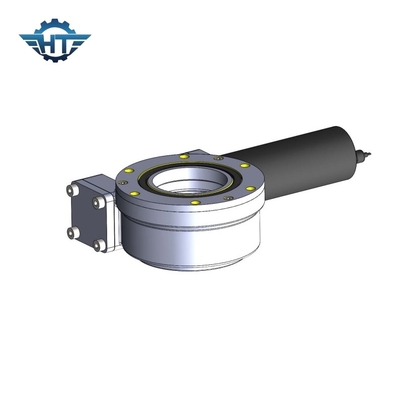

The slewing drive device is a full-circumferential slewing deceleration transmission mechanism that integrates a driving power source. The slewing drive device uses the slewing bearing as a transmission follower and a mechanism attachment. The driving source and the casing, and the other ring is used as both the transmission follower and the connection base of the driven working part, so that the slewing bearing itself is a full-circumference slewing connection, and the driving power source and The main transmission parts make it a universal deceleration transmission mechanism that integrates the functions of rotation, deceleration and driving, and at the same time has a simple structure and is convenient to manufacture and maintain. The picture shows two typical swing drives.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
SE1 Slewing Drive Datasheet
| Model | SE1 |
| Ratio | 32:1 |
| Rated Output Torque (N.m) | 400 |
| Tilting Torque (N.m) | 1000 |
| Holding Torque (N.m) | 1800 |
| Axial Load (kN) | 22 |
| Radial Load (kN) | 12 |
| Efficiency | 40% |
| Precision (°) | 0.1 |
| Self-locking | Yes |
| Weight (kg) | 6 |
| Installation Holes | 6*M8 |
| Center Circle Diameter | Φ 40 mm |
| Inner Hole | Φ 30 mm |
| Work Temperature | － 30℃ ~＋80℃ (optional special grease used in colder or hotter places) |
| Warranty Policy | 5 years, warranty extension available |
When purchasing a slewing drive, you need to know the following parameters:
1 Torque
2 RPM
3 Slewing reducer
