Product Details:
|
| Model: | Vertical 9 Inches | Structure: | Worm Gear Reduction |
|---|---|---|---|
| Application: | Solar Tracking System | Driver: | 24V Electrical Motor |
| Maintenance: | Free | Color: | As Requested |
| Certificates: | ISO9001, CE | Backlash: | 0.15° |
| Highlight: | 24V VE9 Single Axis Slewing Drive,Slewing Drive For Solar Tracker 360 Degree,360 Degree Slew Drive Motor |
||

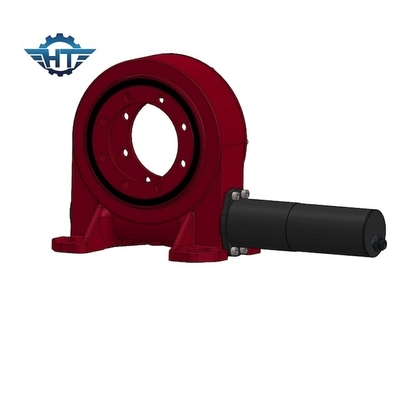

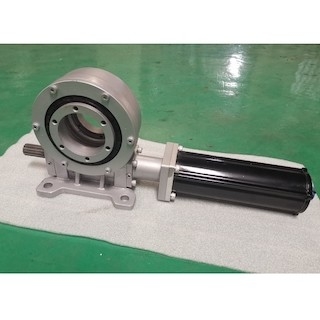

VE9 Single Axis Slew Drive, 360° Full Circle Rotate Ranges For Solar Tracking System
Worm Gear Slew Drive Description
1. Use skeleton oil seal to avoid oil leakage efficiently
2. The mounting dimension designed could match many applications.
3. Easy maintenance
4. Adopt worm gear structure which has strong adhesion and driving torque
5. Hard stop inside incase of mulfunctioning of the software control system
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
The rotary drive can bear axial force, radial force and overturning moment at the same time. The rotary drive is easy to install, easy to maintain, and saves installation space to a greater extent. Structurally, the meshing tooth surfaces of the two wheels of the rotary drive are in line contact, and their bearing capacity is much higher than that of the staggered-axis helical gear mechanism. The worm drive is equivalent to a screw drive, which is a multi-tooth meshing drive, so the drive is stable and the noise is small. This product can be widely used in construction machinery and new energy fields such as heavy-duty flatbed trucks, container cranes, truck-mounted cranes, aerial work vehicles, solar power generator systems for sun patrols, etc.
