| Material: | 50Mn, 42CrMo | Model: | Vertical 3 Inches |
|---|---|---|---|
| Gear Ratio: | 31:1 | Efficiency: | 40% |
| Application: | Mini Solar Trackers | Warranty: | 5~10 Years |
| Field Lifetime: | 30 Years | Installation Site: | Open Field, Flat Roof |
| Highlight: | VE3 Small Slew Drive,42CrMo Small Slew Drive,24VDC Motor slew drive solar |
||

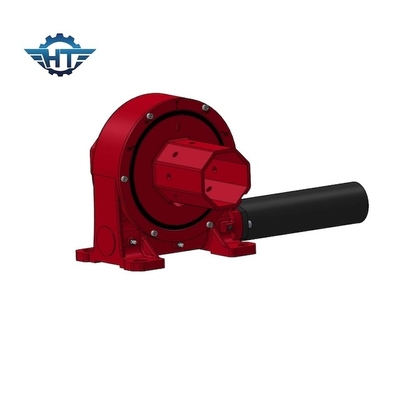

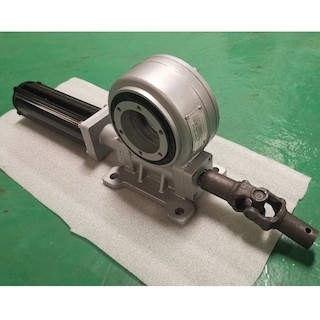

VE3 Small Size Slewing Device With Electric Motor For Open Field Mini Solar Trackers
Small Size Slewing Device Description
VE3 small size slewing drive is one of our slewing drives family. It is a new type of transmission product, it can rotate a heavy load with a very slow speed. It is usually composed of worm, gear, housing, motor and other components. Since the core components are the hourgalss worm and gear, they can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary products, the new slewing drive features easy installation, easy maintenance and a greater degree of installation space.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Q&A
The rotary drive is noisy, what should I do?
The wrong selection of lubricant for the slewing device, insufficient lubricant or aging and induration can cause the slewing drive device to generate vibration and noise, and this noise has no certain rules. In this case, only the appropriate lubricant for the slewing drive device is selected, the amount of lubricant is adjusted, the service life of the lubricant of the slewing bearing is prolonged, and the replacement cycle is reasonably determined.
When running, the motor makes a lot of noise, is this normal?
Common buzzing sounds and rack resonance sounds are common when the motor is running. The axial vibration of the motor shaft will cause a large high-frequency noise - buzzing sound, the frequency of which is the same as the axial vibration frequency, which can be constant or variable. The method to prevent buzzing is the same as the method to prevent axial vibration.
