Product Details:
|
| Slewing Range: | Full Circle Ranges | Material: | 42CRMN Or 50Mn |
|---|---|---|---|
| Application: | Single Tracking System | Warranty Period: | 10 Years |
| Color: | Customer Required | Shipping Ways: | By Sea, Air, Railway, Express |
| Motor: | Electrical Motor | Feature: | Self Lock |
| Highlight: | Double Enveloped Worm Gear Slew Drive,Worm Gear Slew Drive 50Mn,CSP slewing ring drive |
||

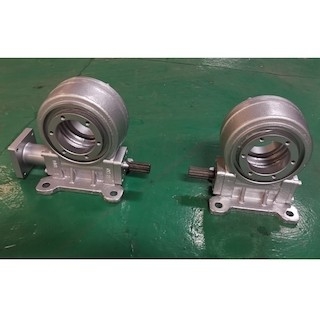

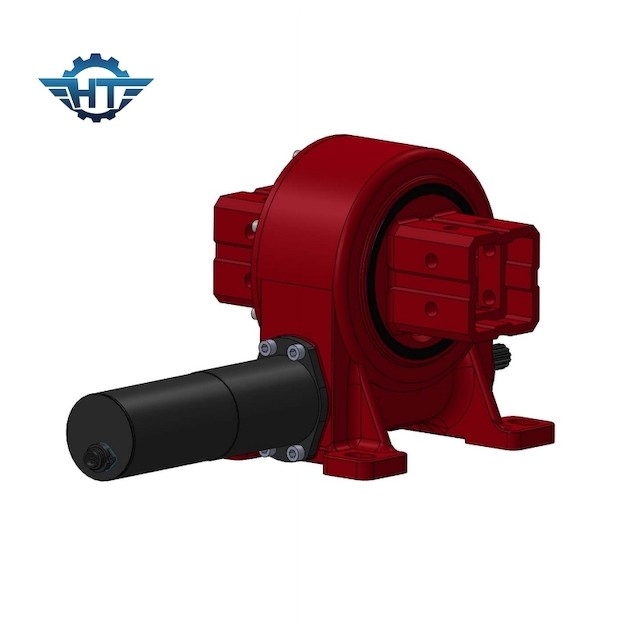

VE9 Double Enveloped Worm Gear Slew Drive For Solar Panel Single Tracking System
Worm Gear Slew Drive Description
Our swing drives are dual-envelope maintenance-free tracking products. The double envelope structure transmission has the advantages of high precision, high mechanical efficiency, small precision loss and longer service life. In addition, considering the harsh environments such as wild deserts, and thinking of what customers think, the innovative use of fully sealed mechanism design makes it possible to be maintenance-free during the product life cycle and saves a lot of maintenance costs for customers.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
The slewing drive can be used in any occasion that requires full-circle rotation and requires variable speed. When it is necessary to realize the power transmission of larger torque, the transmission of higher precision motion, or the selection of the mechanism that requires high compactness and integrity of the body structure, the slewing drive is the best solution.
The more common applications are generally the full-circle rotary structure of engineering and construction machinery, as well as solar energy, wind energy and various long-term automatic tracking machinery. It is easy to carry out digital control, so it has many applications in the field of industrial robots.
