Product Details:
|
| Gear Ratio: | 51:1 | Worm Gear Backlash: | 0.15° |
|---|---|---|---|
| Rated Output Torque: | 7344 Nm | Holding Torque: | 60 KN.m |
| Tilting Torque: | 10 KN.m | Efficiency: | 40% |
| Color: | As Requested | Shipping Way: | By Sea, Air, Railway, Express |
| Highlight: | Double Enveloping Small Slew Drive,VE7 Small Slew Drive,VE7 Slewing Ring Drive |
||

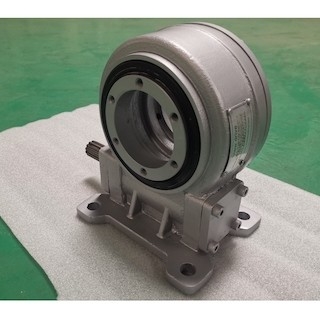

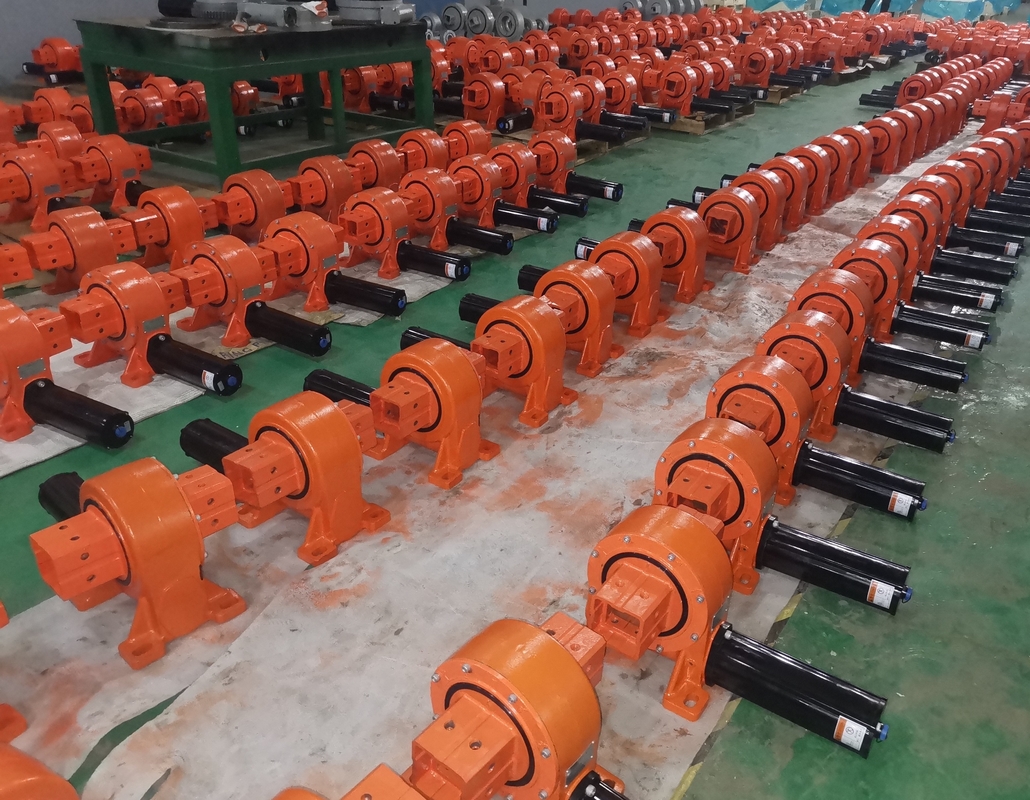

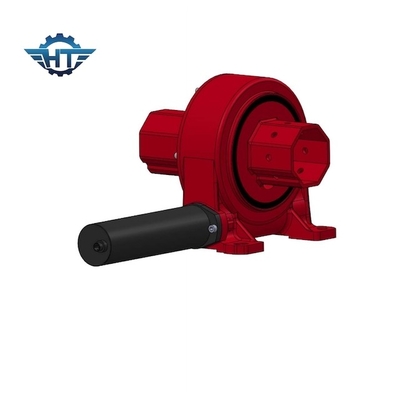

VE7 Double Enveloping Small Slewing Drives For Horizontal Single Axis Solar Trackers
Industrial Use Worm And Gear Slew Drive Description
Slewing drive is of high reliability, it is designed and tested to guarantee a 30-year field life. So all of the raw materials must meet the standards required by the solar tracking system. We implement a sound quality control to ensure out products of high quality, reliable and low cost at the same time.
Slewing drives is of high performance. It is powered with hourglass worm technology to give the gearbox enormous strength and power, maximize survivability load-holding as well as increased efficiency and accuracy.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
Slewing drive applications include solar trackers, wind turbines, antenna, satellite, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s and automotive lifts etc.
Q&A
How to choose the right swing drives?
In the selection and calculation of the slewing drive, we should consider that the slewing bearing generally bears the combined action of the axial force Fa, the radial force Fr and the overturning moment M during the use process. For different applications, due to the working mode of the main engine And different structural forms, the combination of the above three loads will change, sometimes it may be the joint action of the two loads, and sometimes it may only be the sole action of one load.
There are two types of installation methods for slewing bearings: seat type installation and suspension type installation.
According to the information provided by the product samples, the static bearing capacity curve can be used to preliminarily select the slewing bearing according to the selection and calculation method of the slewing bearing, and then confirm with the technical department of our company. We can also provide our company with relevant information on the application of slewing bearings, and our company will design and select them.
