| Model: | Worm And Worm Gear | Type: | Vertical IP66 |
|---|---|---|---|
| Gear Ratio: | 61:1 | Application: | Solar Energy |
| Motor: | Electrical Motor | Tooth Contact: | Multi-tooth |
| Precision: | 0.15 Degree | OEM Service: | Yes |
| Highlight: | VE9 Single Axis Slewing Drive,OEM Single Axis Slewing Drive Gearbox,OEM worm gear slew drive |
||

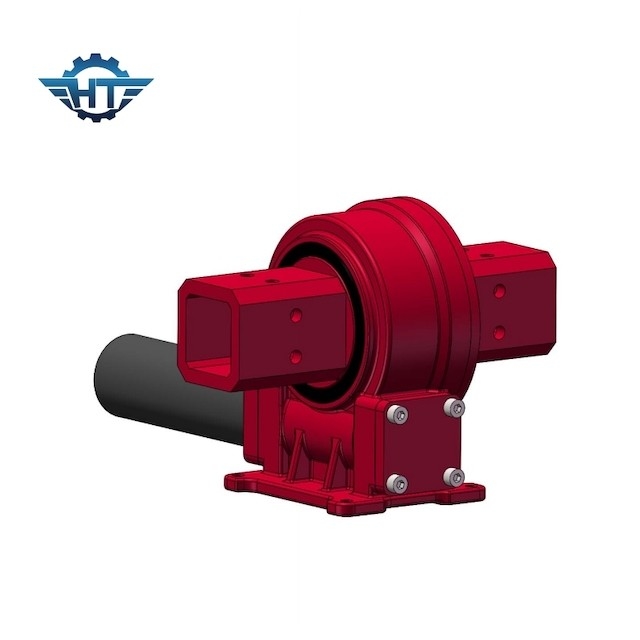

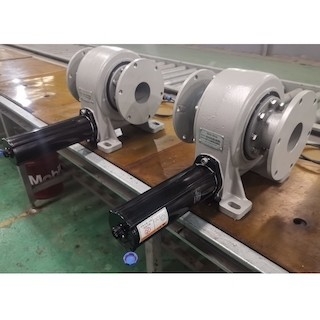

VE9 Single Axis Slewing Drive Gearbox With Customized Tube Size For Solar Energy
Self Locking Slewing Drive Description
Self locking slewing drive featured with multi tooth contact worm gear, no need of brake inside the drivers. That will improve the safety of the solar tracking system.
The slewing drives have many types such as enclosed type, open housing type, vertical type, dual axis type, high precision type, worm drive type etc. The enclosed hourglass worm type is most popular in the application of solar tracking system. The slewing drive is based on the worm and worm gear stuucture with strong tilting moment torque and static self-locking function. Multi tooth contact surface is designed specially for driving high load.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
The solar tracking system
The tracking solar support system is a very important part of the photovoltaic power station. It carries the power generation main body of the photovoltaic power station. If the design is unreasonable, an accident occurs in the disaster climate, and the impact on the power station is fatal. Therefore, in the design process, it is particularly important to select a suitable rotary drive device. Our technology will finally determine the appropriate slewing drive device according to the working conditions provided by the customer, the component arrangement design, and the experience of previous project applications, comprehensively considering various factors.
