Product Details:
|
| Type: | Single Worm And Enclosed Housing | Material: | 42CRMN, 50Mn |
|---|---|---|---|
| Warranty: | 5~10 Years | Application: | Solar Power System |
| Color: | Customized | Tilting Moment Torque: | 16300 N.m |
| Size: | Customized Size | Feature: | Quick Installation |
| High Light: | Worm Gear Solar Tracker Slewing Drive,Solar Tracker VE9 Slew Drive,Solar Sun Tracking System Slewing Drive |
||

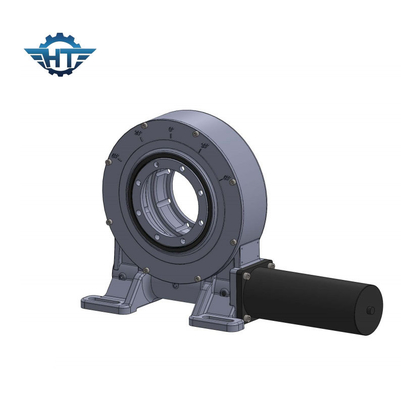

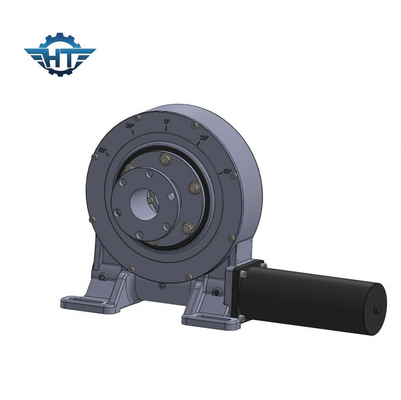

VE9 IP66 Worm Gear Slewing Drive Gearbox For Sun Tracking System
IP66 Slewing Drive Product Description
Our slewing drive is IP66 and featured with self locking so that no need brake inside which will greatly improve the safety of the solar tracking system.
The slewing drives have many types such as enclosed type, open housing type, vertical type, dual axis type, high precision type, worm drive type etc. The enclosed type which has hourglass worm is the most popular in the application of solar tracking system including dual axis solar tracking sytem and single axis solar tracking system. The slewing drive is based on the worm and worm gear stucture with strong moment torque and static self-locking function. Multi tooth contact surface is designed specially for driving high load.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
Solar trackers including single axis solar tracking systems and dual axis solar tracking systems, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, diggers, and automotive lifts.
Packaging and Shipping
Inner Packaging: anti-rust plastic film ; vacuum plastic bags.
Outer Packaging: hard carton; wooden case ; wood pallet.
Shipping Term: by express; by air; by land; by sea.
For samples, since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea while the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.
If in bulk order in the future, we recommend ship by sea.
Note:
Express: door to door, just need to pay the import tax if required by the custom.
By air or by sea: factory to destination airport/sea port, need pay destination fee charged by the airport(the destination fee is always charged by per B/L regardless of the package is big, small, heavy or light, in gerneral 200~400 USD per cargo) and import tax if required by the custom.
By train: sometimes the shipping price is the same as sea but taking less shipping time than sea, we will take this shipping way into consideration if the goods are in urgent need by our clients.
