Product Details:
|
| Type: | VE7 Worm Gear Slewing Drive | Material: | 42CRMN, 50Mn |
|---|---|---|---|
| Warranty: | 5~10 Years | Application: | Solar Tracking System |
| Color: | Customized | Efficiency: | 40% |
| Size: | Customized Size | Feature: | Self Locking |

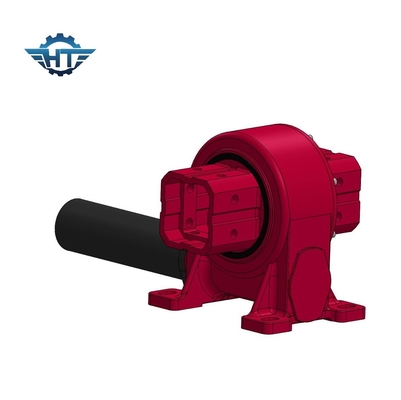

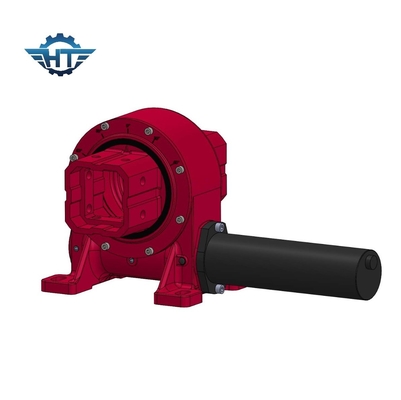

VE7 Slew Drive Gearbox With Enclosed Housing and Hourglass Worm For Solar Trackers
Worm Gear Slewing Drive Description
Hangtuo's highly available and reliable integrated slew drives, are widely used in industrial and mobile applications, and play an important role in fueling the exponential growth of utility-scale solar installations around the world.
We are dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Our products range from single axis slewing drives, dual axis slewing drives, our product size range from 1 inch to 25 inch, with standard and non-standard models, which are mainly applied in horizontal single axis solar tracking system, dual axis solar tracking system, CSP(concentrated solar power), heliostat, tower, heat thermal, CPV, AGV, forklift truck attachment,construction machinery, port machinery, mining machinery, welding machinery, construction vehicles, modular vehicles,environmental protection equipment, metallurgical machinery, medical machinery, wind equipment and other fields.
Techincal Sheet of Vertical Series Slewing Drive
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 13kg |
| 5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 18kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 28kg |
| 8" | 51:1 | 2250 | 11200 | 50 | 80 | 20400 | 40% | ≤0.1 | Yes | 35kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 51kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 61kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 78 kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 105 kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 185 kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 244 kg |
Applications
Solar trackers including single axis solar tracking systems and dual axis solar tracking systems, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, diggers, and automotive lifts.
