Product Details:
|
| Model: | 9 Inches | Gear Ratio: | 61:1 |
|---|---|---|---|
| Efficiency: | 40% | Type: | Horizontal Series |
| Application: | Solar Energy | OEM Service: | Available |
| Place Of Origin: | Changzhou, China | Driver: | 24V DC Motor |
| High Light: | SE9 worm gear slewing drive,worm gear slewing drive Single Axis,Single Axis Solar Tracker slew drive |
||

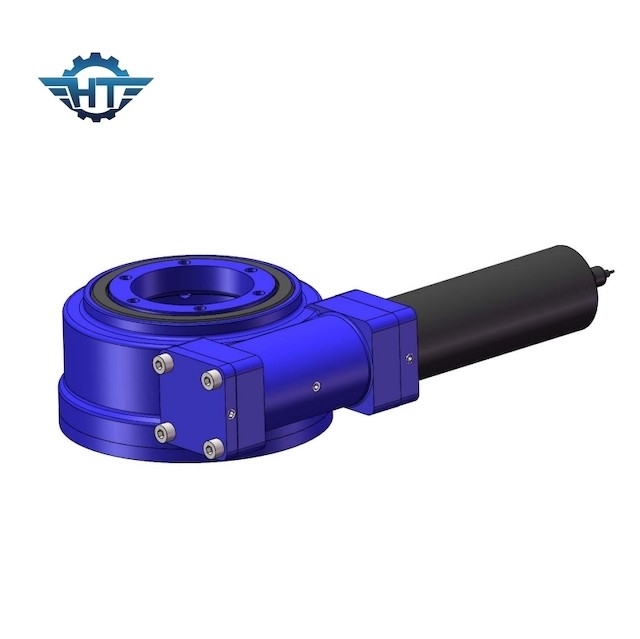

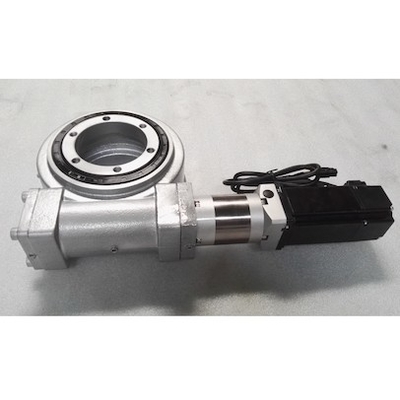

SE9 Inches Electric Motor Driven Slew Drive For Single-Axis Tracking Solar Arrays
Electric Motor Driven Slew Drive Description
A slewing drive (or slew drive for short) is a complete, ready to install system that consists of a ball or roller slewing ring (bearing), worm, and completely enclosed housing. It can be customized with hydraulic or electric planetary gearboxes with selectable IP grade based on different applications and customers’ demand.
Single axis applied flat single-axis tracking bracket is a form of tracking bracket with north-south arrangement and tracking in the east-west direction. According to the astronomical algorithm, the motor is driven to drive the bracket, so that the module can track the azimuth of the sun, increase the direct component of sunlight on the surface of the photovoltaic module, and then increase the power generation. .
Performance Parameters of SE Series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
