Product Details:
|
| Model: | VE7" | Gear Ratio: | 57:1 |
|---|---|---|---|
| Applications: | Tilting Tracking System | Rated Output Torque: | 7344 Nm |
| Holding Torque: | 60 KNm | Tilting Torque: | 10 KNm |
| Corrosion Class: | C4, C5 | Standard Color: | As Requested |
| Highlight: | C4 C5 Corrosion Vertical Slewing Drive,Slewing Drive For Solar Tracking System 60kNm,C4 C5 Corrosion slewing bearing drive |
||

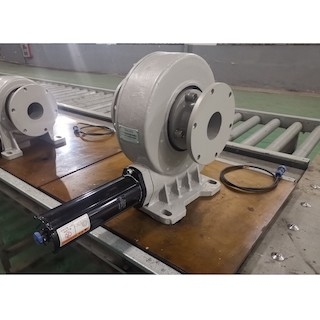

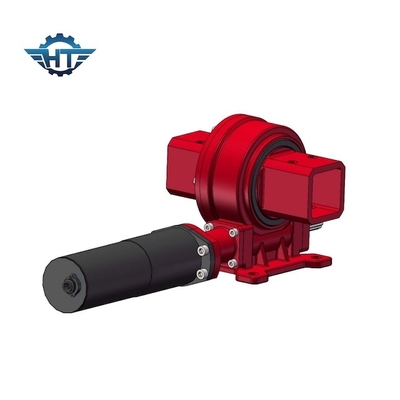

7 Inches Vertical Single Worm Slew Drive For Solar Energy Tilting Tracking System
Solar Tracker Slew Drive Description
The single axis vertical slew drives are mounted vertically, it is specifically designed for flat single axis solar tracking systems that require tracking towards the sun for east to west. The precise rotation of the vertical slew drive allows the mechanism to track perfectly. This kind of vertical slewing drive is manufactured using the latest technology which incorporates hourglass mechanism.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Q&A
How long is the life of the rotary reducer in general? How should the power station be properly maintained during its operation?
The slewing drives' design and laboratory data meet the 25-year transmission life. Depending on the application, the grease in the slewing drive needs to be changed regularly.
During the working process, what are the possible problems of the rotary reducer?
During the working process, under the premise of reasonable design and selection, the most likely problem of the rotary reducer is "the shortening of the actual service life". The actual service life here refers to the selection of sealing, heat treatment or materials. If the control is not in place, various problems will occur after the reducer is used for a period of time, such as reduced accuracy, rust, water ingress, oil leakage, and stuck.
What is the solution?
From the early stage design, process, manufacturing to the later stage of on-site installation error proofing, and then to operation and maintenance, grasp every detail well, and minimize or avoid the potential quality problems of the rotary reducer.
