Product Details:
|
| Material: | 50Mn, 42CrMo | Model: | VE9" |
|---|---|---|---|
| Gear Ratio: | 61:1 | Application: | Horizontal Single Axis Tracking System |
| Feature: | IP66 Enclosed House | Worm Gear: | Double Enveloping |
| Efficiency: | 40% | Standard Color: | RAL 9006 |
| High Light: | VE9 Solar Tracker Slew Drive,24V Motor Solar Tracker Slew Drive,24V Motor Slew Drive |
||

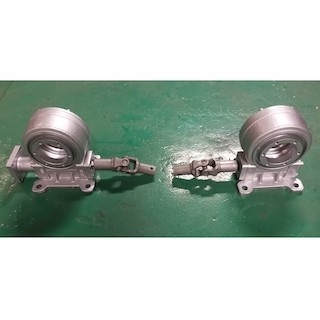

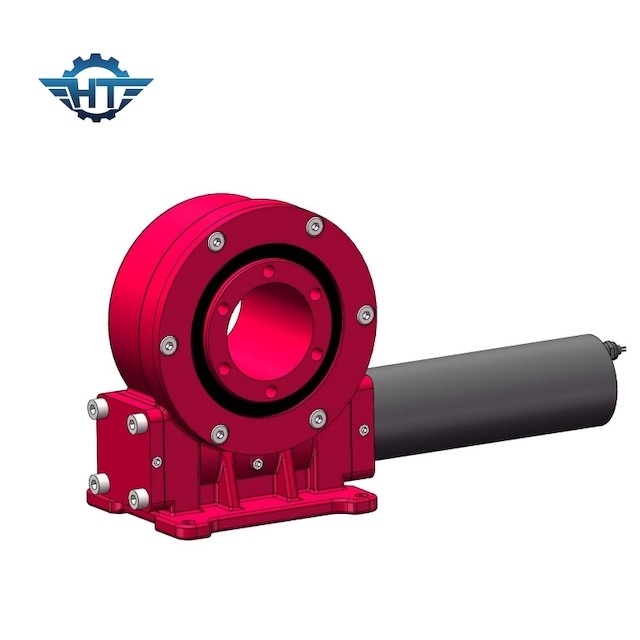

VE9 Slew Drive Gearbox With 24V Motor For Horizontal Single Axis Tracking System
VE9 Slew Drive Gearbox Description
The VE model is a robust enclosed-gearing slewing drive solution equipped for high duty cycle, low-speed (<1 RPM) applications. Its application is solar energy.
In the early stage of photovoltaic development, photovoltaic supports are all fixed structures, which are relatively simple in structure and low in cost. With the cancellation of subsidies, affordable access to the Internet, and the increasing demand for the profitability and efficiency of power plants, tracking brackets using slewing drives have also received more and more attention from the market.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
VE9 Slewing Drive Advantages
1. High backholding torque to improve the solar tracking system's safety
2. Hard stop inside in case the mulfunctioning of the software control system
3. Enveloping worm drive inside
4. Multi tooth contact to ensure high load
5. Self-locking function
Applicatons
Single axis tracking system
Single axis tracking system includes the flat single axis and tilted single axis.
