Product Details:
|
| Model: | VE7 Slewing Gear | Speed: | Low Speed |
|---|---|---|---|
| Gear Ratio: | 51:1 | Normal Output Torque: | 7344 Nm |
| Holding Torque: | 60 KNm | Tilting Torque: | 10 KNm |
| Max Torque: | 7650 Nm | Standard Color: | RAL 9006 |
| High Light: | Home Small Solar Tracker Slew Drive,Solar Tracker Slew Drive 60kNm,Slew Drive Gearbox 60kNm Holding Torque |
||

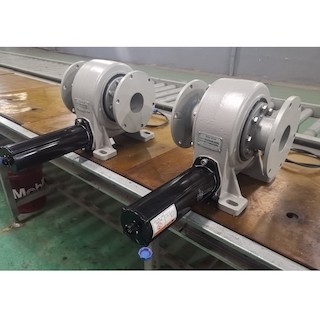

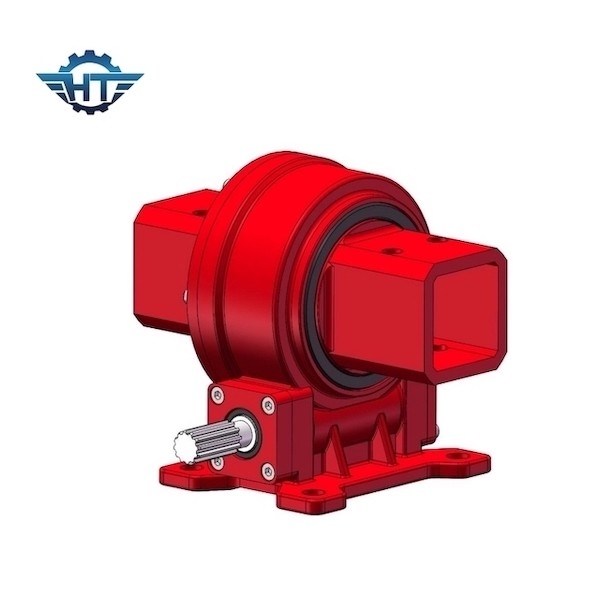

VE7 Small Size Single Axis 51:1 Ratio Slew Drive For Home Solar Sun Tracking System
Small Size Slewing Drive Description
Photovoltaic brackets are special structures designed and installed in the solar photovoltaic power generation system to support, fix and rotate photovoltaic modules. The photovoltaic brackets need to combine the topography, climate and solar resource conditions of the construction site to arrange the photovoltaic modules in a certain orientation and arrangement. and spacing is fixed. In order to make the photovoltaic power station achieve the best power generation efficiency, the photovoltaic tracking system bracket came into being. Because it needs to be used for a long time under specific working conditions, the rotary drive device, as one of the core components in the rotation system of the photovoltaic tracking bracket, needs to have strong mechanical properties such as wind pressure resistance, snow pressure resistance, earthquake resistance, and corrosion resistance to ensure It can operate normally in various harsh environments such as sand, rain, snow, earthquake, etc., and the service life is generally required to reach more than 25 years.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
Applicatons
Horizontal axis tracking system, 1 portrait, 2 portrait, 3H etc. We can provide suitable solutions for different solar panel arrangement.
CSP: fresnel, parabolic
