Product Details:
|
| Model: | 3 Inch | Gear Ratio: | 31 |
|---|---|---|---|
| Efficiency: | 40% | Type: | Dual Axis |
| Application: | Solar Tracker | OEM Service: | Available |
| Place Of Origin: | Changzhou, China | Motor: | 12/24vdc Motors |
| Highlight: | solar tracker drive,slewing gear |
||

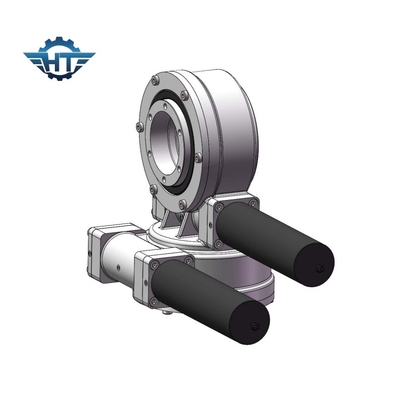

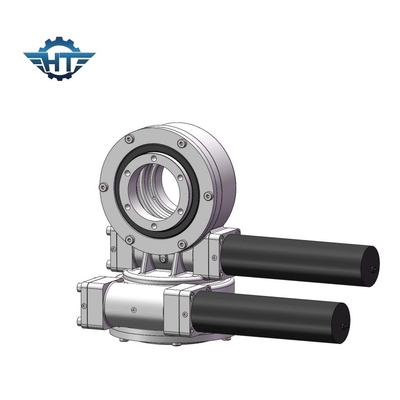

SDE / PDE 3 Inch Worm Gear Slew Drive High Precision For Dual Axis Solar Trackers
Worm Gear Slew Drive Description
Solar tracker comprises of several parts including sun tracking algorithm, control unit, positioning system, drive mechanism system, sensing devices, wind guard, tubes, and rods. Growing demand for energy supplemented by fluctuating fuel oil prices, increase in efficiency of solar panels by the use of solar trackers and increased product demand are expected to bolster the overall solar tracker market growth.
Slewing drive is a main part in solar tracker. By adopting slewing bearing as its core component, slewing drive can bear axial force, radial force and tilting moment simultaneously. Dual axis solar tracking system is one of the applications of slewing drives.
Parameters of SDE slewing drives
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Features
1. High backholding torque to improve the solar tracking system's safety
2. Enveloping worm drive inside
3. Multi tooth contact to ensure high load
4. Self-locking function
Dual axis slewing drives are used in dual axis solar trackers, heliostats, concentrated photovoltaics (CPV), and satellite antenna. By applying a dual axis slewing drives on a solar system, the panels will always be oriented towards the sun, no matter the season, time of the day or latitude of the regions. It can let the project owner gain more electricity capacity up to 40%. And thus more yield.
Q&A
1. How can i choose?
Please specify the wheel diameter size, width, voltage, power and no-load speed of the required motors.
2. Could I take samples to test quality and market in advance?
Sure, welcome to take samples to test our quality and service.
3. What's the total cost for samples?
Total sample cost= sample cost + freight
We will give you the best shipping cost after you choose the suitable gear motors
4. How do you ship samples?
Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex
5. What's your minimum order quantity?
10 sets after samples confirmed
6. What's your delivery time?
For standard samples: within 7days; for batch orders: within 25 days.
