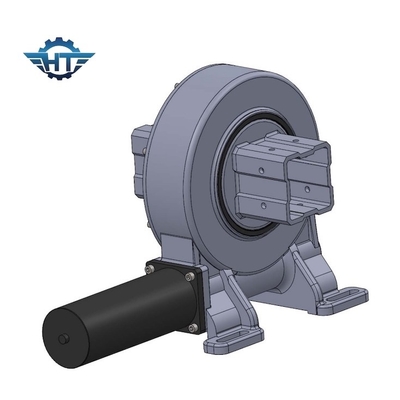

Multi-Tooth Contact Solar Slew Drive Gearbox for PV Tracking & Precision Equipment

Multi-Tooth Contact Solar Slew Drive Gearbox for PV Tracking & Precision Equipment
Multi-Tooth Contact Solar Slew Drive Gearbox for PV Tracking & Precision Equipment Multi-Tooth Contact Solar Slew Drive Gearbox for PV Tracking & Precision Equipment

Large Image :  Multi-Tooth Contact Solar Slew Drive Gearbox for PV Tracking & Precision Equipment

Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month

Multi-Tooth Contact Solar Slew Drive Gearbox for PV Tracking & Precision Equipment

Description
Material: 50Mn, 42CrMo Model: SDE7"
Gear Ratio: 57:1 Rated Output Torque: 2000 Nm
Holding Torque: 13500 Nm Tilting Torque: 13200 Nm
Efficiency: 40% Standard Color: RAL 9006
Highlight:

slew drive motor

,

slewing ring gear

Multi-Tooth Contact Solar Slew Drive Gearbox for PV Tracking & Precision Equipment



Solar Slew Drive Gearbox​ Description



Our products ranging from 200mm to 5000mm,which mainly apply for tunneling equipment, harbor and shipyard cranes, construction equipment, mobile cranes, offshore technology, tower cranes, turning machinsolar energy plants, ship deck cranes, railway cranes, man lifts, wind turbines, and more. Our ability to optimize the bearing design for your specific needs is unparalleled and we will do our best to provide you.



The slewing drive is a new type of slewing product, usually called slewing ring, which is usually composed of worm, slewing ring, housing, motor and other components. Since the core components are slewing bearings, they can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary products, the new rotary drive has features of easy installation, easy maintenance and higher IP grade.



Features



1. High backholding torque to improve the solar tracking system's safety

2. Enveloping worm drive inside

3. Multi tooth contact to ensure high load

4. Self-locking function



SDE Model Slewing Drive Performance Parameters



Model

Ratio

Rated Output Torque(N.m)

Tilting Torque(N.m)

Holding Torque(N.m)

Axial Load(kN)

Radial Load(kN)

Efficiency

Precision(°)

Self-locking

Weight(kg)

3"

31:1

600

1500

5800

10

15

40%

≤0.1

Yes

25

5"

37:1

800

6000

9200

16

27

40%

≤0.1

Yes

34

7"

57:1

2000

7500

13200

34

58

40%

≤0.1

Yes

56

9"

61:1

4300

16000

27200

60

130

40%

≤0.1

Yes

92

12"

78:1

5800

25000

40560

77

190

40%

≤0.1

Yes

160

14"

85:1

6750

48000

44200

110

230

40%

≤0.1

Yes

224

17"

102:1

9460

67000

53040

142

390

40%

≤0.1

Yes

320

21"

125:1

16000

89000

65000

337

640

40%

≤0.1

Yes

492

25"

150:1

21450

112000

89000

476

950

40%

≤0.1

Yes

705



Applicatons



Slewing drive are widely used in PV,CPV,STP solar tracking systems and construction applications including truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications.
