Product Details:
|
| Material: | QT | Model Number: | SDE21" |
|---|---|---|---|
| Type: | Worm And Wormwheel | Life Time: | 30 Years |
| OEM: | Available | Application: | Solar Tracking System |
| Ratio: | 125:1 | Enclosed Housing: | Yes |
| Highlight: | slewing ring drive,worm drive motor |
||

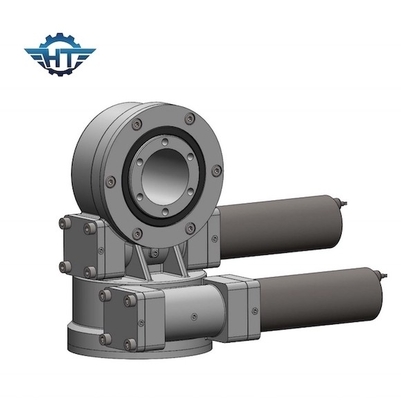

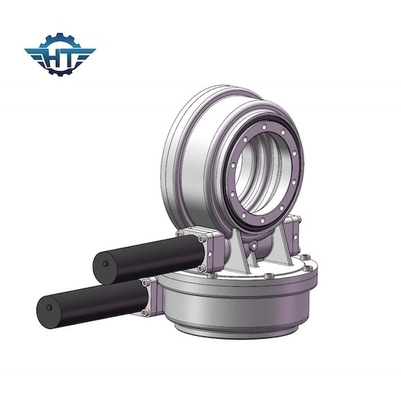

Helical Gear Enclosed Housing Dual Axis Slew Drive Model SDE21 With AC 380 Motor For Solar Tracker
Enclosed Housing Dual Axis Slew Drive Description
Slew drives use patented hourglass worm technology to give maximum control and movement support. Our worm gears engage 5 to 11 teeth on the pitch line of the ring gear from the hourglass screw, which is higher tooth engagement than standard worms, giving the gearbox greater stability and strength. Learn more about hourglass technology.
The most common slewing drive application for the dual-axis slewing drivesare dual-axis solar trackers, such as heliostats and concentrated photovoltaics (CPV), and satellite or radar dishes. Other applications include automotive lifts, robotic arm positioners, and stage equipment.
SDE Dual-Axis Positioner Specifications
SDE dual-axis slewing drives are assured for a 30-year field life of precise 3D positioning. SDE drives create an efficient and reliable solution in a single drive. We qualify all of our components and raw materials using standards set by ISO 9001, CE certifications to maximize field life.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Applications
The azimuth & Elevation combined and enclosed designing can improve the tracking precision and power generation efficiency.
