Product Details:
|
| Material: | QT | Model: | Single Axis 5 Inches |
|---|---|---|---|
| Gear Ratio: | 37:1 | Rated Output Torque: | 962 Nm |
| Holding Torque: | 30 KNm | Tilting Torque: | 6 KNm |
| Efficiency: | 40% | Work Temp.: | -30℃～+80℃ |
| Highlight: | slewing ring drive,worm drive motor |
||

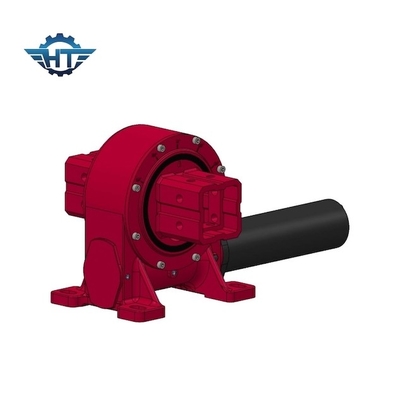

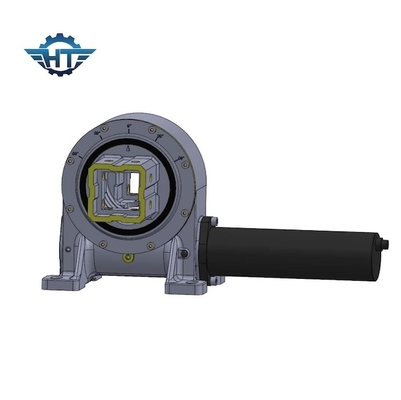

Enclosed VE5 Worm Gear Slewing Drive For Single Axis GPS Sun Tracking System
Worm Gear Slewing Drive Descripiton
Hangtuo‘s slewing drive is composed of the housing, slewing bearing, sealing, enveloping worm with some completed spare parts. We can also produce the Electronic motor and Hydraulic motor used for slewing drives, which can moves for clockwise direction and counter clockwise direction rotation.
Model:VE5
Place of Origin: Changzhou,China
Brand: HT
Type:Enclosed
Material:QT
Output Torque: 962 N.m
Tilting Moment Torque: 6000 N.m
Holding Torque: 30 kN.m
Static Axial Rating:16 KN
Static Radial Rating:27 KN
Gear Ratio: 37:1
Efficiency:40%
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Advantages
1. Strong overturning moment based on slewing ring
2. Adopt enveloping worm drive
3. Drive larger load for using multi tooth contact
4. Better static self-locking function
