Product Details:
|
| Material: | QT | Model: | SDE21" |
|---|---|---|---|
| Holding Torque: | 89 KNm | Tilting Torque: | 65 KNm |
| Efficiency: | 40% | Axial Load: | 337 KN |
| Radial Load: | 640 KN | Color: | Based On RAL Code |
| Highlight: | slewing ring drive,small slew drive |
||

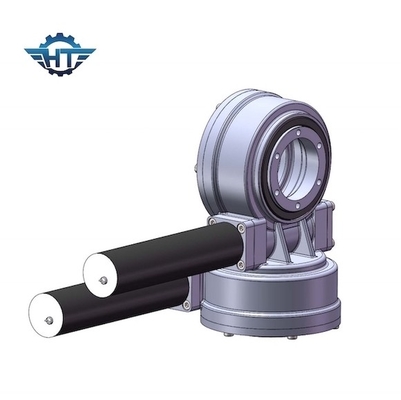

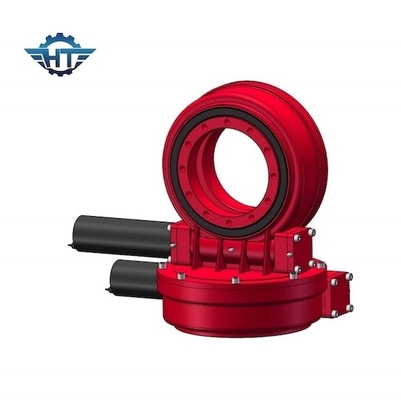

Low Noise SDE Slew Drive Gearbox With High Holding Torque For Dual Axis Solar Tracking System
Low Noise SDE Slew Drive Description
The dual axis solar tracker includes a moving platform, a fixed platform, a serial chain, a parallel chain and a driving device such as dual axis solar tracker slewing drive. The moving platform is supported by the serial chain and driven by the parallel chain, forming a parallel tracking mechanism. slew drive for dual axis solar tracker is configured to drive the parallel chain to motion so as to drive the moving platform to rotate around vertical and horizontal axes. The dual axis solar tracker slewing drive of the present disclosure has a larger workspace, a better tracking performance and advantages of high rigidity, low energy consumption, small driving torque and low inertia, etc.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Glossary of Key Parameters
Tilting Moment Torque: Torque is the load multiplied by distance between the position of load and the center of slewing bearing. If the qorque generated by load and distance is greater than the rated tilting moment torque, slewing drive will be overturned.
Radial load: Load vertical to the axis of slewing bearing
Axial load: Load parallel to the axis of slewing bearing
Holding torque:It is the reverse torque.When the drive is rotating reversely, and parts are not damaged,The maximum torque achieved is called holding torque.
Self-locking: Only when loaded, the slewing drive is not able to reverse rotate and thus called self-locking.
