Customized Designed Dual Axis Slew Drive AC / DC Motor For Flat Single Tracking System
Dual Axis Slew Drive Description

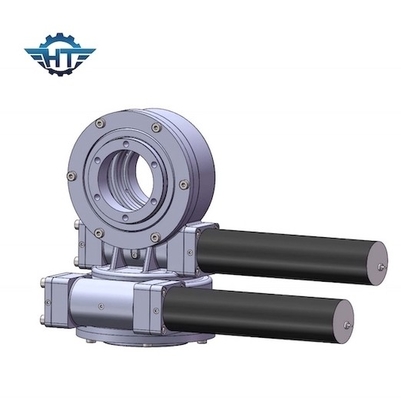

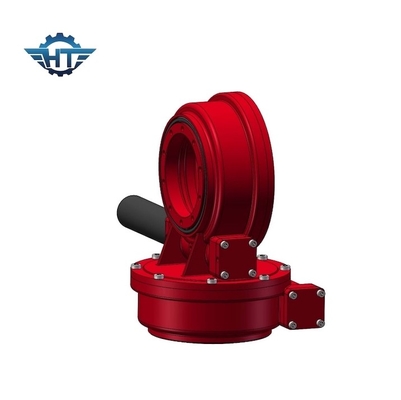

SDE3 dual axis slewing drive for PV,CPV solar tracking system.
Hangtuo Slewing Drive is a professional slewing drive research and development manufacturer,which are widely applied on new energy(single and dual axis PV/CPV/CSP solar tracking system,wind power),engineering machinery(pavement construction machinery, port facilities and mining area), satellite receiver and other fields.
In the development of new productions constantly updated, Our slewing drives are designed with slewing ring and hourglass worm shaft, from the traditional point contact to surface contact, which has the advantage of strong output torque, smooth rotation and wear-resisting for bearing higher radial & axial load and tilting moment torque.
There are kinds of models of productions in our company from 3'' to 25''(raceway diameter).The slewing drive can be customized to meet the special requirement for new energy and engineering machinery application .Our production are being chosen by customers abroad and home with reliable quality and reputation.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Application Area
Our SDE series slewing drive mainly used for PV, STP, CSP solar tracking systems.
Our other types of slewing drives are widely used for construction applications, such as truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications, heavy load transporters, bridge inspection equipment, telescopic working platform, basket rotator requirements, yacht crane, cement mixer, excavator, etc. We can also provide multiple size of slewing drive and slewing berarings, hydraulic motor & DC Motor to match with slewing drives. Products have been exported to all over the world.
