Product Details:
|
| Model Number: | SE3 With Motor | Holding Torque: | 3000 Nm |
|---|---|---|---|
| Tilting Torque: | 1500 Nm | Output Torque: | 600 Nm |
| Static Axial Load: | 30 KN | Static Radical Load: | 16 KN |
| Raw Material: | 50Mn, 42CrMo | Weight: | 10.5 Kg |
| Highlight: | hydraulic slew motor,solar tracker drive |
||

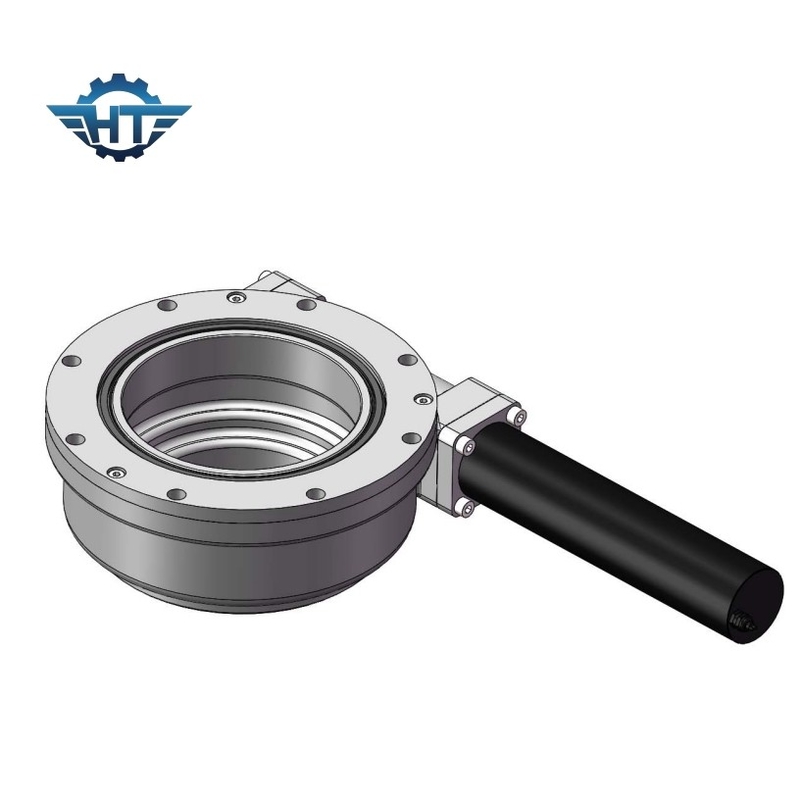

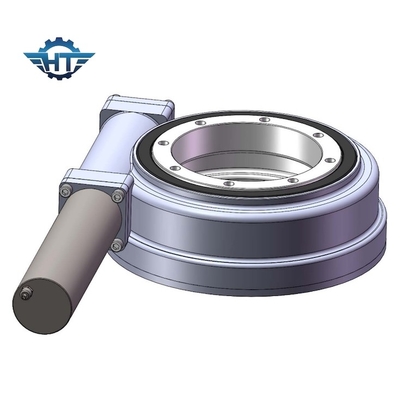

SE3 Solar Tracker Slew Drive with 24VDC Planetary Motor
SE3 Solar Tracker Slew Drive Description
The slewing drive is a new type of slewing product, usually called slewing ring, which is usually composed of worm, slewing ring, housing, motor and other components. Since the core components are slewing bearings, they can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary products, the new rotary drive features easy installation, easy maintenance and a greater degree of installation space.
Slewing drive are widely used in PV,CPV solar tracking systems, construction applications including truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications and concentrated solar power (CSP).
| Model | SE3 with 24VDC motor |
| Ratio | 31:1 |
| Rated Output Torque (N.m) | 600 |
| Rated Rotate Speed (RPM) | 0.065 |
| Tilting Torque (N.m) | 1500 |
| Holding Torque (N.m) | 3000 |
| Axial Load (kN) | 30 |
| Radial Load (kN) | 16 |
| Efficiency | 40% |
| Precision (°) | 0.1 |
| Self-locking | Yes |
| Weight (kg) | 10.5 |
| Installation Holes | 6*M10 |
| Center Circle Diameter | Φ 80 mm |
| Inner Hole | Φ 65 mm |
| Work Temperature | － 30℃ ~＋80℃ (optional special grease used in colder or hotter places) |
| Gear Motor Matched | 24V, 2RPM, 30W, 43Nm, ＜3A |
| Warranty Policy | Slew drive 5 years, motor 1 year, warranty extension available |
Our Packing & Transport
Packing:
1. Normal export package: packed with fumigration-free wooden case
2. According to clients' special requirements.
Shipping:
1. Sea transportation: shipping FCL or shipping LCL, this is the most common way
2. Land transportation: this is suitable for the inland countries
3. Air transportation
4. Express: DHL,TNT,UPS,Fedex etc.
Support sea transportation , air transportation, road transportation, Express such as TNT, DHL,UPS,EMS, Fedex,etc for sample and small cargo transportation.
Applications
Solar power system, CSP, CPV, truck crane, aerial work vehicle, welding positioner, sprayer, automatic pipeline, wiping window machine, sensitive medical equipment etc.
