Product Details:
|
| Model: | SE14 | Holding Torque: | 54200 Nm |
|---|---|---|---|
| Tilting Torque: | 68000 Nm | Output Torque: | 6550 Nm |
| Axial Load: | 680 KN | Radical Load: | 230 KN |
| Certificate: | ISO9001,CE | Application: | Solar Tracking System |
| Highlight: | hydraulic slew motor,solar tracker drive |
||

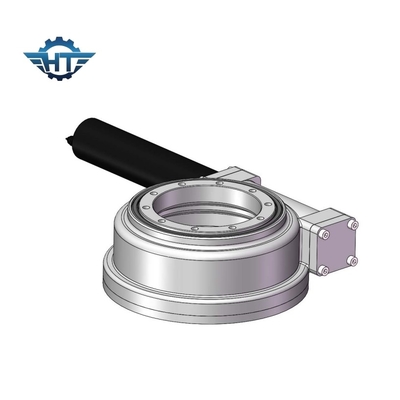

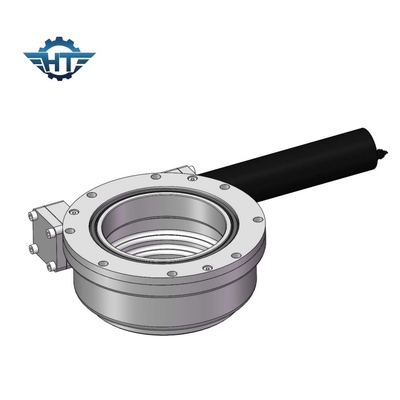

SE Series Worm Gear Slew Drive with High Efficiency for Solar Tracking System
SE Slewing Drive Description
Slewing bearing,slewing ring bearing As technology has improved, more slewing drives are using hourglass worm technology, in which the worm is shaped to engage more teeth in the gear
This increased tooth engagement results in greater strength, efficiency and durability.The slewing drive uses standard worm technology in which the worm on the horizontal The speed ratio of the shaft depends on the relationship between the number of threads on the worm and the number of teeth in the worm gear or gear.
Performace of SE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Installation of the Slew Drive
1.Clean the mounting structure, e.g. from welding, galvanizing, residues, dirt, etc.
2.Lift the slew drive with eye bolts.
3.The slew drive shall be mounted in unloaded condition.
4.The following procedure shall be followed in order to avoid deviations between bolt tightening forces.
5.Apply thread lock liquid to threads.
6.Lay thread lock liquid on thread gap requesting fitting parts fully.
7.Preload the bolts crosswise. See the general pattern in sketch below of how bolts get torque in crosswise sequence. Start with either inner or outer ring. Do the crosswise torqueing of all bolts to 30% of tightening torque. Then repeat crosswise torque to 80% of tightening torque. Finally crosswise torque to 100% of the tightening torque.
There are many applications where a rotary drive can be used, primary because it is well suited for applications that require load to maintain power and rotational torque.
Typical swing drive applications include, but are not limited to:
1.Solar tracker
2.Wind Turbines
3.Men's lift
4.Hydraulic machinery
5.Telehandler
6.Excavator
7.Lift
8.Crane
9.Drilling equipment
10.Military equipment
